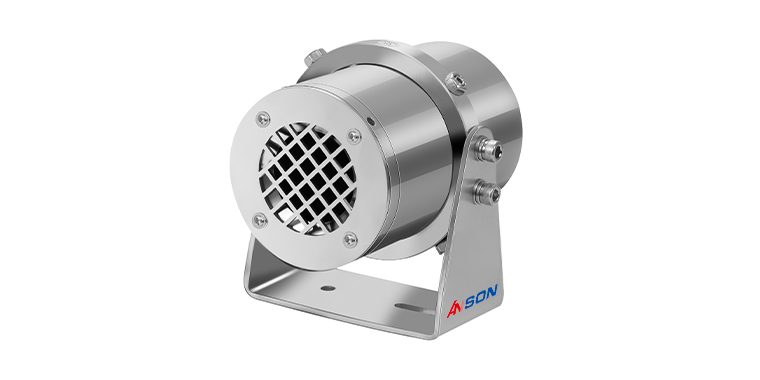

Explosion Proof Thermal Housing Camera HL-E8006-5.0MP-T is an explosion-proof Thermal housing, Visible image: 5.0 megapixel, 10mm lens, and Thermal Image: default is 256*192, wavelength range: 8~14μm
Advantages:tempered glass, wide diameter, wide angle of view. Lens with drawer panels can be pulled in & out for easy installation.
Suitable for flammable gases with class II A、ⅡB、ⅡC, ignition temperature group is zone 1 and zone 2 of T1-T6 group, flammable explosive gas, dust, oil refining, refining, gas station, filling station, oil well, drilling, oil tank truck, pipeline valve station, etc. The mixture of gas, steam or foggy combustible substance and air in explosive gas environment atmosphere will spread all over the environment of un-burned mixture after igniting in the mixture.
- Double explosion proof certification, explosion proof mark: Ex d ⅡC T6Gb/Ex tD A21IP68T80℃
- Resolution : 5.0MP
- support H264 and H265 video compression algorithms;
- visible light uses a high-performance 4 million pixel 1/2.8″ CMOS image sensor
- IP68,Explosion-proof,anti-corrosion,dust-proof and waterproof,Work Temperature: -30°C~+60°C
- 304 Stainless steel / 316L Stainless steel.
|
Model |
HL-E8006-5.0MP-T |
|
Thermal Image |
|
|
Detector type |
Uncooled infrared focal plane sensor |
|
Material type |
Vanadium oxide |
|
Resolution |
400×300 |
|
Pixel spacing |
17μm |
|
Response band |
8-14μm |
|
Thermal sensitivity NETD |
40mK/F1.0 |
|
Frame rate output |
50/60Hz |
|
Focal length |
15mm |
|
Field of view |
15°×11°/46o×35o |
|
F Value |
1.0 |
|
False Color Image Mode |
Total of 17 kinds of white hot, black hot, iron red, etc. |
|
Image parameters |
Brightness, Contrast, Sharpness |
|
Mirror image |
Support , horizontal/vertical/horizontal+vertical |
|
Noise Reduction Function |
Auto/Manual, 2D,3D |
|
FFC Control |
Auto/Manual |
|
Temperature bar |
Open/close |
|
Video Encoding Format |
H.265/H.264/MJPEG |
|
Temperature measurement function |
Point temperature measurement, line temperature measurement, polygonal area temperature measurement, full screen temperature measurement |
|
Correction function |
Auto/Manual/External |
|
OSD Display |
Temperature, time, date, channel number, channel name and customized text |
|
Intelligent alarm |
Motion detection alarm, I/O alarm, disk alarm, intelligent analysis alarm, temperature measurement alarm |
|
Intelligent analyze |
Area invasion, cordon, double cordon, item left, item removed |
|
Temperature measurement alarm |
Over temperature alarm, temperature difference alarm, temperature range alarm |
|
Temperature measurement accuracy |
±2°C or ±2% whichever is greater (settings such as emissivity, distance, ambient temperature, etc.) |
|
Multi-temperature target detection |
Support |
|
Temperature measurement response time |
<30 seconds |
|
Temperature range |
–40℃～+150℃；0℃-550℃ |
|
Temperature measurement display mode |
The measured target is >5°C, and the absolute temperature value is displayed; The measured target is less than or equal to 5°C, and the relative temperature value is displayed (temperature difference value DEV=maximum value-average value) |
|
Protocol support |
Support ONVIF、GB/T28181 |
|
Network protocol |
IPv4/v6、RTSP/RTP/RTCP、TCP/UDP、HTTP、DHCP、DNS、FTP、DDNS、PPPOE、SMTP、SIP |
|
Platform |
Support special platform that for thermal image |
|
Languages |
Support 10 languages, English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian |
|
Visible Image |
|
|
Imaging devices |
1/2.8 inch Scan 4 million pixels line by line CMOS image sensor |
|
Focal length/change |
4mm lens |
|
Zoom mode |
Fixed lens |
|
Aperture |
F1.6 |
|
Shutter |
1/1 seconds ~1/30,000 seconds |
|
WDR |
YES |
|
Minimum illumination |
Color :0.05 Lux @(F1.6, AGC ON) Black and white :0.01 Lux @(F1.5, AGCON) |
|
Day and night switching |
Automatic infrared filter switching color to black |
|
Code Protocol |
H.265、H.264 |
|
Resolution |
50HZ：25fps /2592×1520&(1920X1080)60HZ :30fps /2592×1520& (1920X1080) 50HZ：25fps (1280X720)60HZ :30fps (1280X720) |
|
Video streaming |
Three-code stream |
|
OSD |
Time OSD, Customized OSD |
|
Motion detection |
Support |
|
Privacy Cover |
Support |
|
Agreement |
TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPoE、SMTP、NTP、UPnP、SNMP、FTP、802.1x、QoS、HTTPS、IPv6(SIP, SRTP, optional), GB28181、E-HOME |
|
IR Distance |
15M IR |
|
Compatibility |
ONVIF2.4、GB/T28181 |
|
General |
|
|
Explosion proof signs |
Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db |
|
Power supply mode |
DC12V 2A |
|
Working temperature and humidity |
-40℃~60℃, humidity less than 90% RH( no condensation) |
|
Atmospheric pressure |
80-106KPa |
|
Protection level |
IP68 |
|
Shell material |
304 stainless steel material (chemical, acid and alkali corrosive environment use) |
|
Incoming hole specification |
1 M25 *1.5 feed hole |
|
Installation mode |
A variety of installation options depending on the application environment |
|
Product weight |
3KGS |
