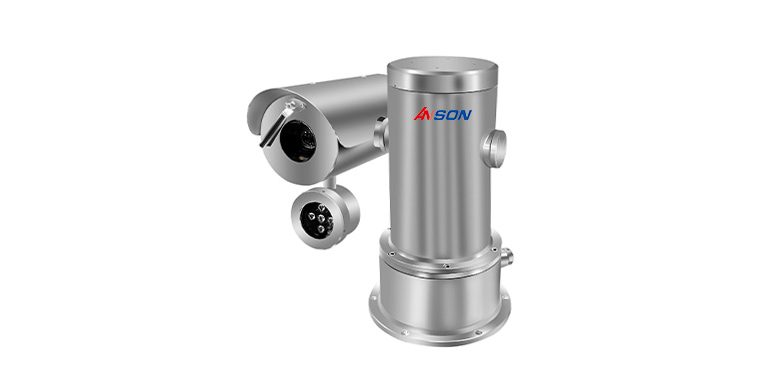

Explosion Proof Camera HL-E8007-W-1080P

Explosion proof camera HL-E8007-W-1080P is a atex rated camera integration IP PTZ camera, and this camera can design to work with washer tank. It can fit for any brand zoom lens.

Application: .Suitable for flammable gases with class II A、ⅡB、ⅡC, zone 1 and zone 2 of T1-T6 group,Enhance safety and security in hazardous environments with our state-of-the-art explosion proof cameras. Designed to meet the stringent demands of industries like oil and gas, mining, and chemical processing, these cameras provide reliable surveillance in potentially explosive atmospheres

double explosion proof certification, explosion proof mark: Ex db IIC T6 Gb ; Ex tb IIIC T80℃ Db
resolution 1920*1080P
support H264 and H265 video compression algorithms;
visible light uses a high-performance 2 million pixel 1/2.8″ CMOS image sensor，26X Zoom
the intelligent wiper function, the wiper uses the automobile wiper piece, the weather resistance is good, the replacement is convenient;
horizontal direction 360° continuous rotation, vertical direction-90°~90°, no monitoring blind area;
IP68,Explosion-proof,anti-corrosion,dust-proof and waterproof
Work Temperature: -30°C~+60°C
100M IR Distance
304 Stainless steel / 316L Stainless steel.
Support intelligent functions of : Video structure, support vehicle, human body detection and target attribute analysis and capture; support helmet detection; support 1T computing power etc

Product model		HL-E8007-W-1080P
Visible light	Imaging devices	1/2.8 inch Scan 2 million pixels line by line CMOS image sensor
	Focal length/change	26X Zoom
	Zoom mode	Electric zoom, autofocus
	Aperture	F1.6-F3.5
	Shutter	1/1 seconds ~1/30,000 seconds
	WDR	YES
	Minimum illumination	Color :0.05 Lux @(F1.6, AGC ON) Black and white :0.01 Lux @(F1.6, AGCON)
	Day and night switching	Automatic infrared filter switching color to black
	Code Protocol	H.265 H.264
	Resolution	50HZ 25fps (1920X1080)60HZ :30fps (1920X1080) 50HZ 25fps (1280X720)60HZ :30fps (1280X720)
	Video streaming	Three-code stream
	OSD	Time OSD, Custom OSD
	Motion detection	Support
	Privacy Cover	Support
	Agreement	TCP/IP HTTP DHCP DNS DDNS RTP RTSP PPPoE SMTP NTP UPnP SNMP FTP 802.1x QoS HTTPS IPv6(SIP, SRTP, optional), GB28181 E-HOME
	Compatibility	ONVIF2.4 GB/T28181
Head	Range of rotation	Horizontal 0-360 continuous rotation, vertical +90 ~-90
	Speed of movement	Level :0.1 -40 s, vertical :0.1 -40 per cent
	Positioning accuracy of cloud head	0.1
	Preset points	255
	Cruise scan	8, each can add 32 preset points
	Pattern scanning	4, each path recorded for more than 10 minutes
	Power off memory	Support
	Watch function	Support
	Variable Speed Limit	Support
	Intelligent features	Video structure, support vehicle, human body detection and target attribute analysis and capture; support helmet detection; support 1T computing power etc
	Azimuth information display	ON/OFF
General norms	Explosion proof signs	Ex db IIC T6 Gb ; Ex tb IIIC T80℃ Db
	Power supply mode	AC85V ~260 V/DC24V 3A( optional)
	Working temperature and humidity	-40 ~60 , humidity less than 90% RH( no condensation)
	Protection level	IP68
	Shell material	304 stainless steel material (chemical, acid and alkali corrosive environment use)
	Incoming hole specification	1 G3/4″ feed hole
	Installation mode	A variety of installation options depending on the application environment
	Product weight	29.5kgs
