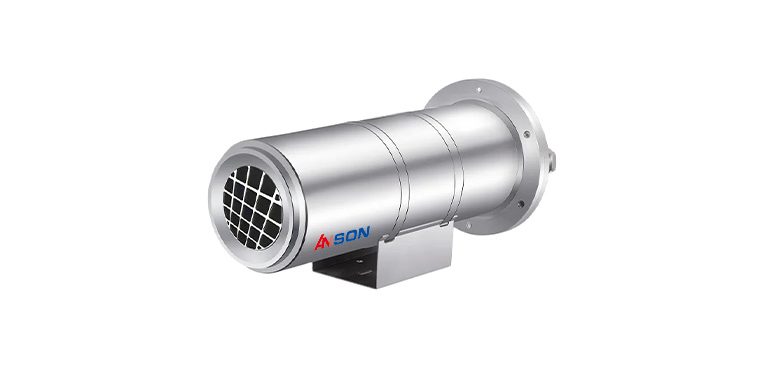

Explosion Proof Thermal Housing Camera HL-814A-W-5.0MP-T is an explosion-proof Thermal housing, Visible image: 5.0 megapixel, 10mm lens, and Thermal Image: default is 256*192, wavelength range: 8~14μm
Advantages:tempered glass, wide diameter, wide angle of view. Lens with drawer panels can be pulled in & out for easy installation.
Suitable for flammable gases with class II A、ⅡB、ⅡC, ignition temperature group is zone 1 and zone 2 of T1-T6 group, flammable explosive gas, dust, oil refining, refining, gas station, filling station, oil well, drilling, oil tank truck, pipeline valve station, etc. The mixture of gas, steam or foggy combustible substance and air in explosive gas environment atmosphere will spread all over the environment of un-burned mixture after igniting in the mixture.
- Double explosion proof certification, explosion proof mark: Ex d ⅡC T6Gb/Ex tD A21IP68T80℃
- Resolution : 5.0MP
- support H264 and H265 video compression algorithms;
- visible light uses a high-performance 4 million pixel 1/2.8″ CMOS image sensor
- IP68,Explosion-proof,anti-corrosion,dust-proof and waterproof,Work Temperature: -30°C~+60°C
- 304 Stainless steel / 316L Stainless steel.
|
Model |
HL-814D-M-5.0MP-T |
|
Certification |
|
|
Ex-proof Mark |
Ex db ⅡC T6 Gb/EX tb IIIC T80℃ Db |
|
Certification |
ECM 25 ATEX-B 0Q75 (ATEX ) |
|
General |
|
|
Material |
304 Stainless steel |
|
Surface treatment |
Stainless steel original color, electro-polishing optional |
|
IP Grade |
IP67 |
|
Connector Size |
M25*1.5 |
|
Weight |
≤7kg |
|
Size |
284mm*397mm*507mm |
|
Installation |
Pole mount, wall mount ( not include Bracket) |
|
Visible Image |
|
|
Camera |
5.0Megapixel |
|
Lens |
8mm |
|
View Angle |
Horizontal: 40° ; Vertical:22° |
|
Iris |
F1.2 |
|
Resolution |
2880 (H)×1620(V) |
|
Language |
Chinese/English |
|
Minimum illumination |
Color: 0.001 Lux @(F1.2, AGC ON), B/W: 0.0003 Lux， 0 Lux with IR |
|
Video Compression |
H.265/H.264/MJPEG |
|
Signal-to-noise ratio |
＞52dB |
|
WDR |
120db |
|
BLC |
Support |
|
Digital noise reduction |
Support 2D/3D |
|
Thermal Image |
|
|
Detector |
Uncooled |
|
Material |
Vanadium oxide |
|
Wavelength range |
8~14μm |
|
Resolution |
256 × 192 |
|
Pixel size |
12um |
|
Thermal sensitivity NETD |
＜ 50 mk(@25 °C,F#=1.0) |
|
Frame rate |
50/60Hz |
|
Lens |
10mm |
|
Field of view |
Horizontal: 17°, Vertical:13° |
|
Clear imaging range |
0.3m~∞ |
|
Pseudo-color image mode |
Black hot/white hot/rainbow/iron red/custom (up to 17 pseudo color modes optional) |
|
Temperature abnormality function |
Full-screen temperature measurement expert mode: 10 points, 10 frames, 1 line, a total of 21 temperature measurement rules |
|
Theoretical temperature measurement range |
–20℃～+150℃ |
|
Dual-light fusion |
Supports thermal imaging channel fusion of visible light image information to enhance thermal imaging channel image details |
|
Intelligent Features |
I/O alarm, temperature measurement warning, intelligent analysis alarm |
|
Network protocols |
IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, 802.1x |
|
RS485 |
Support 1ch, Adaptive PELCO-P and PELCO-D |
|
Detection function |
Human and vehicle shape detection, support for fire point and smoking detection alarm, cross-border detection, intrusion detection, entry/area detection |
|
Environment |
|
|
Temperature |
（-30℃，+70℃） |
|
Compression |
80-106KPa |
|
Relative humidity |
≤95%RH(+25℃) |
