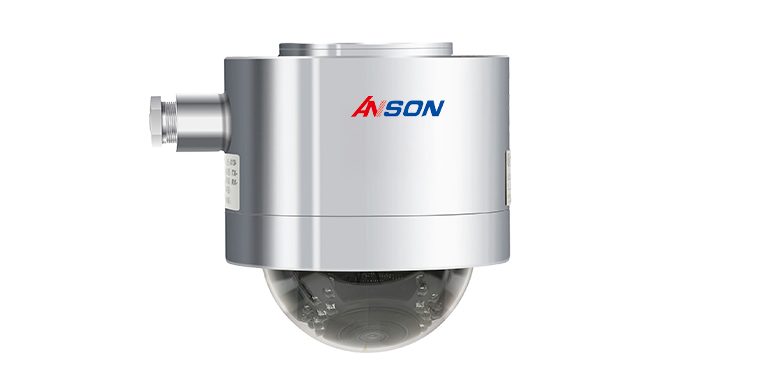

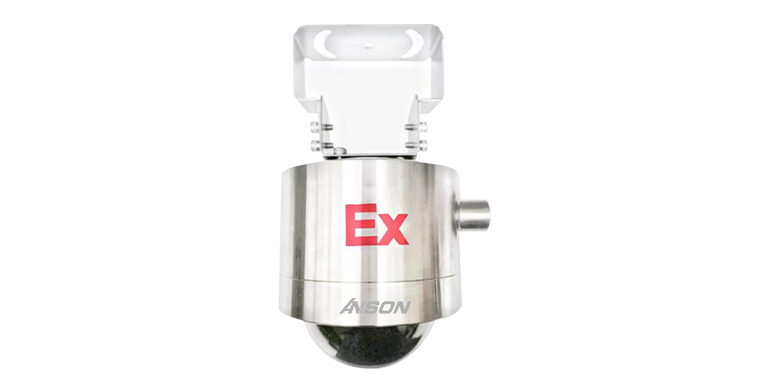

Explosion proof dome camera HL-E9001S-D-4.0MP is one mini dome camera for hazardous environment monitoring solution. It with 30M IR distance, 4.0mp resolution.
It default 6mm fixed lens ( can do other size lens as you request)
Suitable for flammable gases with class II A、ⅡB、ⅡC, ignition temperature group is zone 1 and zone 2 of T1-T6 group, flammable explosive gas, dust, oil refining, refining, gas station, filling station, oil well, drilling, oil tank truck, pipeline valve station, etc. The mixture of gas, steam or foggy combustible substance and air in explosive gas environment atmosphere will spread all over the environment of unburned mixture after igniting in the mixture.
- Double explosion proof certification, explosion proof mark: Ex d ⅡC T6Gb/Ex tD A21IP68T80℃
- Resolution 2688*1520
- Support H264 and H265 video compression algorithms;
- Visible light uses a high-performance 4 million pixel 1/2.8″ CMOS image sensor，2.8mm/4mm/6mm lens optional.
- IP68,Explosion-proof,anti-corrosion,dust-proof and waterproof
- Work Temperature: -40°C~+60°C
- 30M IR Distance
- 304 Stainless steel / 316L Stainless steel
|
Product model |
HL-E9001S-D-4.0MP |
|
|
Visible light |
Imaging devices |
1/2.8 inch Scan 4MP by line |
|
Lens |
2.8mm, 4mm,, |
|
|
Aperture |
F1.6 |
|
|
Shutter |
1/1 seconds ~1/30,000 seconds |
|
|
D-WDR |
YES |
|
|
Minimum illumination |
Color :0.0005 Lux @(F1.6, AGC ON) Black and white :0 Lux @(IR ON) |
|
|
Day and night switching |
Automatic infrared filter |
|
|
Code Protocol |
H.265 H.264 |
|
|
Resolution |
50 Hz: 25 fps (2688 1520, 1920 1080, 1280 720) 60 Hz: 30 fps (2688 1520, 1920 1080, 1280 720) |
|
|
Video streaming |
Three-code stream |
|
|
Motion detection |
Support |
|
|
Privacy Cover |
Support |
|
|
Agreement |
TCP/IP HTTP DHCP DNS DDNS RTP RTSP PPPoE SMTP NTP UPnP SNMP FTP 802.1x QoS HTTPS IPv6(SIP, SRTP, optional), |
|
|
Compatibility |
ONVIF2.4 GB/T28181 |
|
|
Lens |
Lens Type |
Fixed focal lens, 2.8, 4, and 6 |
|
Focal Length & FOV |
2.8 mm, horizontal FOV 112 , vertical FOV 61 , diagonal FOV 134 4 mm, horizontal FOV 95 , vertical FOV 51 , diagonal FOV 115 6 mm, horizontal FOV 58 , vertical FOV 31 , diagonal FOV 69 |
|
|
Lens Mount |
M16 |
|
|
Iris Type |
Fixed |
|
|
Aperture |
F1.6 |
|
|
Depth Of Field |
2.8 mm, 2.5 m to 4 mm, 3.5 m to 6 mm, 7.5 m to |
|
|
DORI |
4 mm, D: 77 m, O: 30 m, R: 15 6 mm, D: 115 m, O: 45 m, R: 23 |
|
|
General norms |
Explosion proof signs |
Ex d IIC T6Gb/Ex tD A21IP68T80 |
|
Power supply mode |
DC12V 2A PoE: 802.3af, Class 3, 36 V to |
|
|
Working temperature and |
-40 ~60 , humidity less than |
|
|
Protection level |
IP68 |
|
|
Shell material |
304 stainless steel material |
|
|
Incoming hole specification |
1 G3/4″ feed hole |
|
|
Installation mode |
A variety of installation |
|
|
IR Distance |
30Meters |
|
|
Product weight |
4kgs |
|
