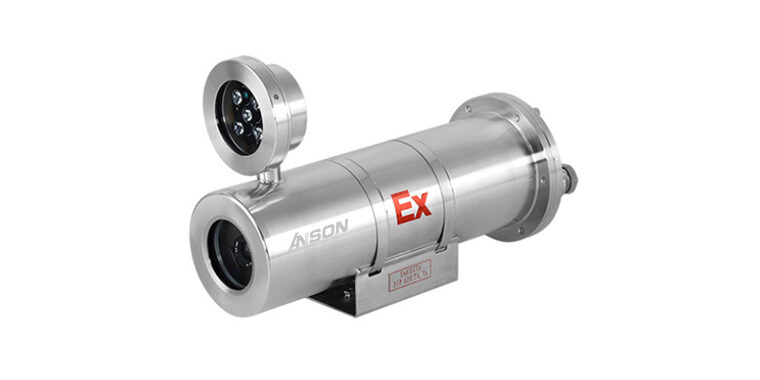

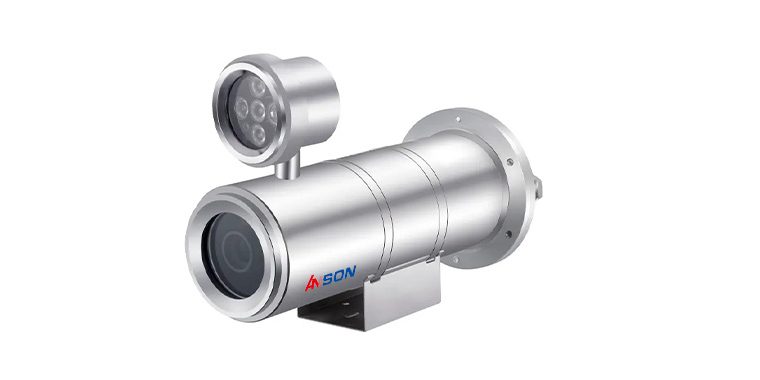

Explosion Proof Housing Camera HL-814D-W-4.0MP is an explosion-proof housing, built-in 33x zoom lens. With invisible wiper. and with night vision: 50Meters
Advantages:tempered glass, wide diameter, wide angle of view. Lens with drawer panels can be pulled in & out for easy installation.
Suitable for flammable gases with class II A、ⅡB、ⅡC, ignition temperature group is zone 1 and zone 2 of T1-T6 group, flammable explosive gas, dust, oil refining, refining, gas station, filling station, oil well, drilling, oil tank truck, pipeline valve station, etc. The mixture of gas, steam or foggy combustible substance and air in explosive gas environment atmosphere will spread all over the environment of un-burned mixture after igniting in the mixture.
- Double explosion proof certification, explosion proof mark: Ex d ⅡC T6Gb/Ex tD A21IP68T80℃
- Resolution 4.0MP
- Support H264 and H265 video compression algorithms;
- Visible light uses a high-performance 4 million pixel 1/2.8″ CMOS image sensor ,33X zoom lens.
- IP68,Explosion-proof,anti-corrosion,dust-proof and waterproof
- Work Temperature: -40°C~+60°C
- 50M IR Distance
- Support SD Card feature, Max: 128GB storage
- 304 Stainless steel / 316L Stainless steel.
|
Product model |
HL-814D-W-4.0MP |
|
|
Visible light |
Imaging devices |
1/2.8 inch Scan 5.0MP by line |
|
Focal length/change |
33X optical Zoom, 16X Digital Zoom |
|
|
Aperture |
F1.4 |
|
|
Shutter |
1/1 seconds ~1/30,000 seconds |
|
|
D-WDR |
YES |
|
|
Minimum illumination |
Color :0.0005 Lux @(F1.6, AGC ON) Black and white :0 Lux @(IR ON) |
|
|
Day and night switching |
Automatic infrared filter |
|
|
Code Protocol |
H.265 H.264 |
|
|
Resolution |
50 Hz: 25 fps (2688 1520, 1920 1080, 1280 720) 60 Hz: 30 fps (2688 1520, 1920 1080, 1280 720) |
|
|
Video streaming |
Three-code stream |
|
|
Motion detection |
Support |
|
|
Privacy Cover |
Support |
|
|
Agreement |
TCP/IP HTTP DNS DDNS RTP RTSP PPPoE SMTP NTP UPnP FTP HTTPS |
|
|
Compatibility |
ONVIF2.4 GB/T28181 |
|
|
Lens |
Lens Type |
4.5~ 148.5mm, AF automatic |
|
Digital zoom |
16X |
|
|
Optical zoom |
33X |
|
|
General norms |
Explosion proof signs |
Ex d IIC T6Gb/Ex tD A21IP68T80 |
|
Power supply mode |
DC12V 2A |
|
|
Working temperature and |
-40 ~60 , humidity less than |
|
|
Protection level |
IP68 |
|
|
Shell material |
304 /316L stainless steel |
|
|
Incoming hole specification |
1*M25*1.5 feed hole |
|
|
Installation mode |
A variety of installation |
|
|
IR Distance |
50Meters |
|
|
Product weight |
8kgs |
|
