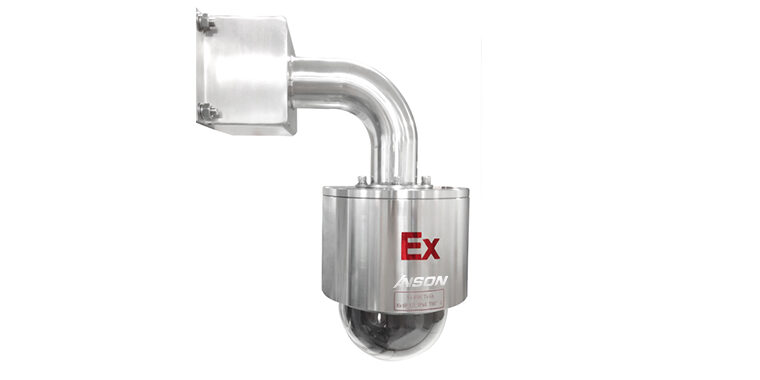

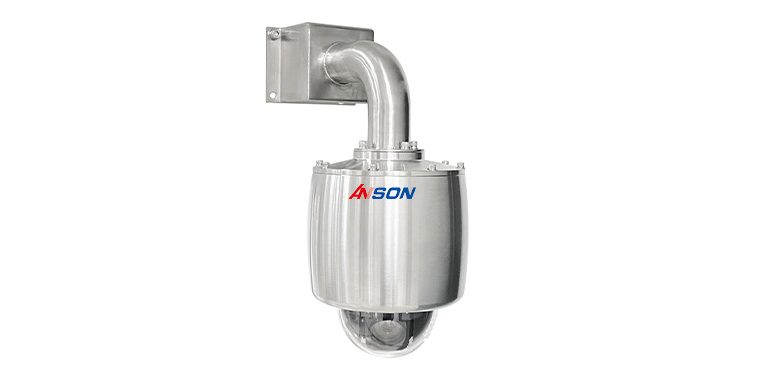

Anson ATEX Certificated camera HL-E9001-W-1080P is one Professional Explosion-proof High Speed Dome PTZ Camera, it can produce be IP or analog, and zoom lens suitable for 20X, 26X, 30X, 33X,36X,37X zoom etc.
Anson explosion-proof cameras have many advantages. First, they provide excellent image quality regardless of lighting conditions, size and physical characteristics of the monitored area. At the same time, it supports intelligent analysis functions, such as human detection, vehicle and other moving object detection, etc. In addition, you can also access the recordings of Anson cameras from remote locations, which is very suitable for dangerous areas, helping to minimize risks and reduce unnecessary exposure of personnel.
- Highly integrated explosion-proof pan/tilt
- 2.0MP resolution, 26X optical Zoom, 12X Digital Zoom.
- Applicable to dangerous and harsh environments where various flammable gases or dust exist.
- 316L Stainless steel and 304 Stainless steel material optional according to different work environment, outdoor use IP68, It has good shielding and cooling effect. Explosion-proof, dust-proof, waterproof, rust-proof.
- 360°horizontal rotation, -90°~+90°vertical movement, all-round monitoring of suspicious targets.
- Work Temperature: -40°C~+60°C
- Support intelligent functions of : Motion detection ,intrusion detection.
|
Product model |
HL-E9001-W-1080P |
|
|
Visible light |
Imaging devices |
1/2.8 inch Scan 2 million |
|
Focal length/change |
26X optical Zoom, 12X Digital Zoom |
|
|
Zoom mode |
Electric zoom, autofocus |
|
|
Shutter |
1/1 seconds ~1/30,000 seconds |
|
|
WDR |
YES |
|
|
Minimum illumination |
Color :0.001 Lux @(F1.5, AGC ON) Black and white :0.0005 Lux @(F1.5, AGCON) |
|
|
Day and night switching |
Automatic infrared filter |
|
|
Code Protocol |
H.265 H.264 |
|
|
Resolution |
50Hz: 25fps (1920 1080, 1280 960, 1280 720); 60Hz: 30fps (1920 1080, 1280 960, 1280 720) |
|
|
Video streaming |
Three-code stream |
|
|
OSD |
Time OSD, Custom OSD |
|
|
Motion detection |
Support |
|
|
Privacy Cover |
Support |
|
|
Agreement |
TCP/IP HTTP DHCP DNS DDNS RTP RTSP PPPoE SMTP NTP UPnP SNMP FTP 802.1x QoS HTTPS IPv6(SIP, SRTP, optional), |
|
|
Compatibility |
ONVIF2.4 GB/T28181 |
|
|
Lens |
Lens type |
AF automatic focusing and |
|
Digital Zoom |
12 |
|
|
Optical Zoom |
26X |
|
|
Head |
Range of rotation |
Horizontal 0-360 continuous |
|
Speed of movement |
Level :0.1 -240 s, vertical :0.1 -180 |
|
|
Positioning accuracy of cloud |
0.1 |
|
|
Preset points |
255 |
|
|
Cruise scan |
8, each can add 32 preset |
|
|
Pattern scanning |
4, each path recorded for more |
|
|
Power off memory |
Support |
|
|
Watch function |
Support |
|
|
Variable Speed Limit |
Support |
|
|
Intelligent features |
Motion detection ,intrusion detection. |
|
|
Auto Mode |
Automatic cruise |
|
|
Azimuth information display |
ON/OFF |
|
|
General norms |
Explosion proof signs |
Ex db IIC T6 Gb/Extb IIIC T80℃ Db |
|
Power supply mode |
DC12V |
|
|
Working temperature and |
-40 ~60 , humidity less than |
|
|
Protection level |
IP68 |
|
|
Shell material |
304 /316L stainless steel material |
|
|
Incoming hole specification |
1 G3/4″ feed hole |
|
|
Installation mode |
A variety of installation |
|
|
Pressure |
80-106KPa |
|
|
Product weight |
12kgs |
|
