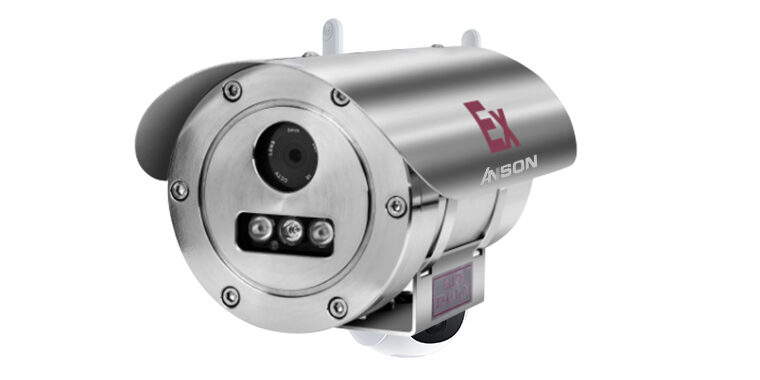

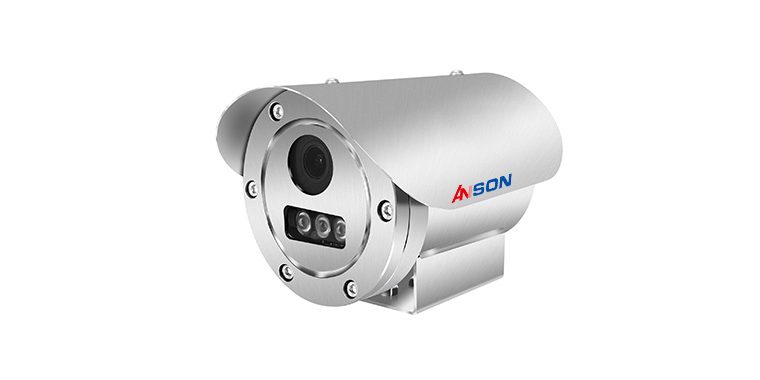

Anson Explosion Proof Camera Enclosures HL-814D-M-1080P is one smaller size explosion proof housing camera with IR vision of 30 Meters .
Because of its small size ,so it can more suitable for some special dangerous area but with weight limitation. It is suitable for granaries or other warehouses, with low cost ，easy of the installation and with enough monitoring range.
- Double explosion proof certification, explosion proof mark:Ex db IIC T6 Gb/Extb IIIC T80℃ Db
- Resolution 2.0MP
- Support H264 and H265 video compression algorithms;
- 2.0MP 1/2.8″ CMOS image sensor ,4mm lens
- IP68,Explosion-proof,anti-corrosion,dust-proof and waterproof
- Work Temperature: -30°C~+60°C
- 30-50M IR Distance
- 304 Stainless steel / 316L Stainless steel optional according to different work environment.
|
Model |
HL-814A-W-1080P |
|
Mark of Explosion-proof |
Ex db IIC T6 Gb/Extb IIIC T80℃ Db |
|
Material |
304/316L stainless steel optional |
|
Grade of Explosion-proof |
IP68 |
|
Camera |
|
|
Sensor |
1/2.8 CMOS sensor |
|
Effective pixels |
2.0MP(1920*1080) |
|
Day&Night |
AUTO Starlight |
|
White balance |
Auto/manual |
|
Min Lux |
0.01Lux Color 0.001Lux B&W |
|
BLC |
Off/low/middle/high/very high |
|
HLC |
Support |
|
WDR Range |
digital WDR |
|
DNR |
3DNR |
|
SNR |
50dB |
|
Video Compression format |
H.265 Main Profile / H.264 High profile / M-JPEG |
|
Network Interface |
1ch 10/100Base Ethernet RJ45 |
|
Network Protocol |
TCP/IP HTTP NTP IGMP DHCP UDP SMTP,RTP,RTSP ARP DDNS DNS HTTPS P2P |
|
Onvif |
Standard Onvif 2.4 |
|
Privacy protection |
4 Area per picture |
|
Day&Night |
Auto ,Fixed B&W,Fixed Color,External control |
|
Auto Mode |
Support 4 automatic cruise,4 Automatic cruise trace,automatic line sweep |
|
Main Stream |
1920×1080 1280×960 1280 720 720 576 640 480 |
|
Sub Stream |
640 480 352 288 320 240 176 144 |
|
Output Stream rate |
32Kbps~10Mbps |
|
User |
3 view at the same time |
|
Lens |
|
|
Megapixel |
2.0 Megapixel |
|
Day/Night |
Yes(with IR CUT filter) |
|
Lens Type |
26X Zoom |
|
General |
|
|
Outside Dimension |
340*130mm |
|
Inside Dimension |
280*100mm |
|
Weight |
4.5kg |
|
The outlet hole number |
2 |
|
Cable entry s screw spec |
G-3/4 / M20x1.5 |
|
Power Supply |
DC 12V; 2A |
|
Working Temperature |
-30 C~+60 C |
|
Wiper |
Invisible wiper, Nanometer Material |
