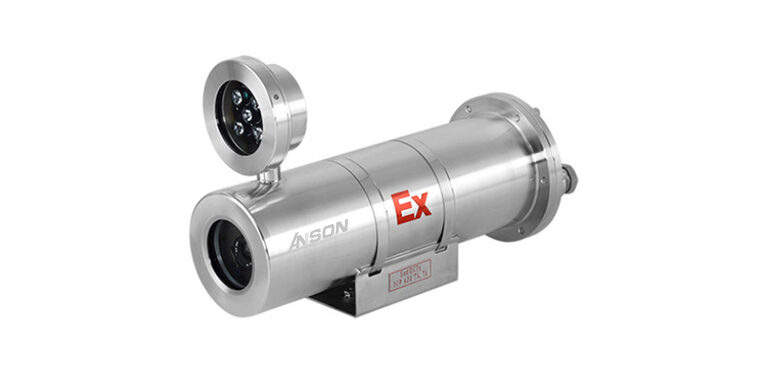

KBA127A is one professional coal mine camera that installed in Coal Mine ,with 100M IR distance .It is certificated under the standard of GB3836-2000、HLYX001-2008 , and it get the certification of MAK130178, It can do Analog or IP cameras according to the project requirements
- ◆ Professional Mining use explosion proof Camera
◆ 304 or 316 stainless steel
◆ Coal security certificate: MAK130178
◆Ex-proof marking: Exd I Mb
◆ Built-in Low Lux 1/3’’ CMOS, 960P 1.3MP (1280*960) Box Camera
◆ BNC port, transmission distance (coaxial cable75-3 @10800P) is 500M.
◆ Support HD video
◆ With IR-CUT for days and night.
◆ IP67 , Explosion-proof, anti-corrosion, dustproof and waterproof
◆ 100M IR Distance
|
Model |
KBA127A |
|
Mark of Explosion-proof |
Exd I Mb |
|
Certification No. Of Explosion-proof |
MAK130178 |
|
Material |
Stainless steel 304/316L Optional |
|
Grade of Explosion-proof |
IP67 |
|
Installation Method |
Semi fixed platform,fixed bracket |
|
Optical transceiver |
Single mode/dual mode A single pure video ,wavelength 850nm |
|
Tempered glass |
Nanometer Material |
|
Camera |
|
|
sensor |
1/3 “CMOS sensor |
|
Effective pixels |
1280*960 |
|
Video |
AHD and CVBS standard |
|
system |
PAL/NTSC |
|
Video output |
1ch AHD HD / CVBS standard definition output (can switch) |
|
Frame rate |
PAL：1280X960@25fps |
|
Transmission distance max |
Over 500M via coaxial cable 75-3 |
|
Day&night |
IR-CUT auto switch |
|
White balance |
Auto/manual |
|
BLC |
Off/low/middle/high/ very high |
|
HLC |
support |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
IR Distance |
100M |
|
Lens |
|
|
Megapixel |
3.0Megapixel |
|
Day/Night |
Yes( with IR CUT filter) |
|
Lens Type |
Fixed |
|
Maximum Aperture |
F/1.2 |
|
Mount |
CS/M14 |
|
Image Format |
1/2.7” |
|
Operation (Focus/Zoom/Iris) |
Manual/Manual/DC drive |
|
Focal Length |
6MM lens |
|
General |
|
|
Video signal output |
DC12V |
|
Video signal |
0.7±0.2v |
|
Sync Header signal |
0.3±0.1v |
|
weight |
5.8kg |
|
Voltage input |
AC110V-AC265V |
|
UHP |
select |
|
consumption |
≤1000mA |
|
Inner Size |
110mm*320mm |
|
Input & output quantity/ spec |
2pcs M20x 1.5 |
|
Work Humidity |
≤95% +25ºC |
|
Atmospheric Pressure |
80KPa-106KPa |
|
Work Temperature |
0ºC~+40ºC |
|
Installation |
Wall / Ceiling |
