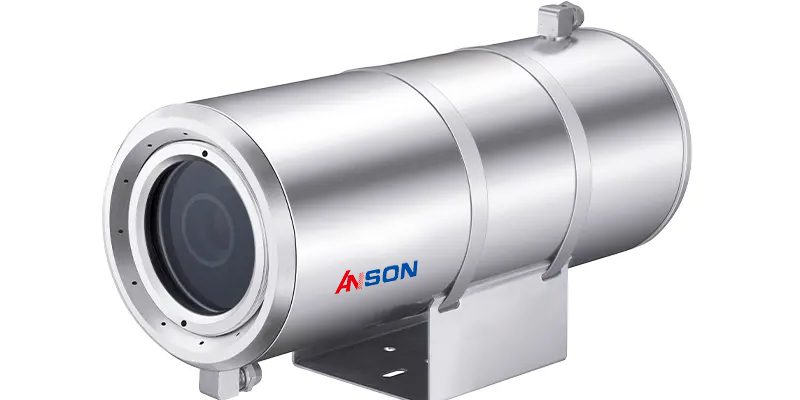

Anson Air cooling camera HL-814F-W-1080P is one Special designed camera for high temperature environment monitoring solution system.
The camera is made of double-layer stainless steel and uses a fixed bracket and pan/tilt to adjust the angle. Compressed air or nitrogen circulates through the mezzanine to achieve a cooling effect.
And an air curtain is formed on the front end cover to prevent dust. It has good anti-corrosion and anti-dust capabilities and can be used in environments with high temperature, dust and corrosive gases. Widely used in: monitoring of high-temperature areas such as steel, glass, metallurgy,cement, etc Incinerator furnace
● Air-Cooled High Temperature Housing Camera ,Resolution 2.0MP
● Support H264 and H265 video compression algorithms;
● Visible light uses a high-performance 2 million pixel 1/2.8″ CMOS image sensor ,4-20mm lens
● Work Temperature: -30°C~+650°C
● 304 Stainless steel/316L Stainless steel
Model | HL-814F-W-1080P |
Material | Stainless steel 304. |
Grade | IP66 |
Camera | |
Sensor | 1/2.8 CMOS |
Effective pixels | 2.0Megapixel |
Day&Night | AUTO Starlight |
White balance | Auto/manual |
Min | 0.01Lux Color 0.001Lux B&W |
BLC | Off/low/middle/high/very high |
HLC | Support |
WDR Range | 100dB |
DNR | 3DNR |
SNR | 50dB |
Video | H.265 Main Profile / H.264 High profile / M-JPEG |
Network Interface | 1ch 10/100Base Ethernet RJ45 |
Network | TCP/IP HTTP NTP IGMP DHCP UDP SMTP,RTP,RTSP ARP DDNS DNS HTTPS P2P |
ONVIF | Standard ONVIF2.4 |
Privacy | 4 Area per |
Day&Night | Auto ,Fixed B&W,Fixed Color,External |
Auto | Support 4 |
Main Stream | 1920×1080 1280×960 1280 720 720 576 640 480 |
Sub | 640 480 352 288 320 240 176 144 |
Output Stream rate | 32Kbps~10Mbps |
User | 3 view at the same time |
Working Temperature | C30 C~+650 C |
Dust | 200mg /m3 |
Compressed air temperature | 35 |
Compressed | 0.3~0.4Mpa |
Compressed air flow | 0.3~0.5m3 /min |
Lens | |
Megapixel | 2.0Megapixel |
Focal | f=4mm-20mm |
Lens Type | 4-20mm varifocal lens |
Aperture | D/f=4.0 |
View Angle | 2 =67 –19.7 |
General | |
Weight | 5kg |
Power | DC 12V; 2A |
