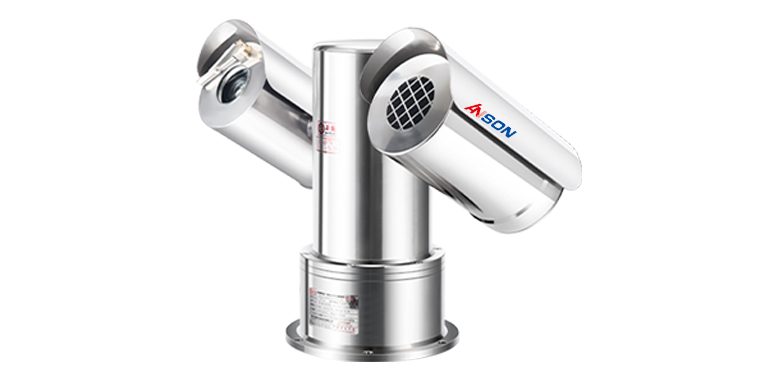

Anson Explosion proof thermal ptz camera HL-E9002-W-4.0MP-T is a atex rated camera integration IP thermal PTZ camera, it with visible image of HD 4.0mp resolution, 30x zoom lens and thermal image of 640*512 resolution,wavelength range: 8 to 14 µm
Application: .Suitable for environments containing Class IIA, IIB, and IIC flammable gases, as well as Zone 1 and Zone 2 hazardous areas classified within temperature groups T1 through T6. Elevate safety and security standards in hazardous environments with our cutting-edge explosion-proof cameras. Specifically engineered to meet the rigorous demands of industries such as oil and gas, mining, and chemical processing, these cameras provide reliable and robust surveillance protection within potentially explosive atmospheres.Suitable for environments containing Class IIA, IIB, and IIC flammable gases, as well as Zone 1 and Zone 2 hazardous areas classified within temperature groups T1 through T6. Elevate safety and security standards in hazardous environments with our cutting-edge explosion-proof cameras. Specifically engineered to meet the rigorous demands of industries such as oil and gas, mining, and chemical processing, these cameras provide reliable and robust surveillance protection within potentially explosive atmospheres.
- Thermal image resolution: 640 × 512 resolution, wavelength range: 8-12 μm,
- Thermal: 8/25mm motorized lens optional; Visible: 30x optical zoom module
- Detection capabilities: Human/vehicle, smoker, smoke & flame, fire point detection
- Intelligent analytics: Intrusion, single/double line crossing, loitering, wrong-way, enter/leave area detection, smart motion detection, and people counting
- Support temperature monitoring and exception alarm
- Support 3 temperature measurement rule types (spot, line, area)
- 304/316L Stainless Steel optional
|
Model |
HL-E9002-W-4.0MP-T |
|
Certification |
|
|
Ex-proof mark |
Ex db ⅡC T6 Gb/EX tb IIIC T80℃ Db |
|
Certification |
ECM 25 ATEX-B 0Q75 (ATEX ) |
|
General |
|
|
Material |
304/316L stainless steel optional |
|
Surface treatment |
Stainless steel original color, electro-polishing optional |
|
IP Grade |
IP67 |
|
Rotation angle |
Horizontal: 0°~360°(continuous),Vertical:-90°~+90° |
|
Rotation Speed |
Horizontal: 0.1°/s~30°/s,Vertical: 0.1°/s~30°/s |
|
Communication |
RS422/485 |
|
Protocol |
Pelco-P/Pelco-D |
|
Baud rate |
2,400/4,800/9,600/19,200 bps |
|
Connector size |
G-3/4″ |
|
Weight |
≤35kg |
|
Size |
284mm*397mm*507mm |
|
Motor |
Hybrid stepper motor worm gear drive |
|
Auto Scan |
1,（can set 5 on menu ） |
|
Auto cruise control |
1,（can set 8 on menu） |
|
Tracking |
1,（Record 200 instructions） |
|
Watching position |
Can set 1 preset position/1 automatic cruise/1 automatic scan/1 tracking |
|
Installation |
Pole mount, wall mount |
|
Visible Image |
|
|
Input Voltage |
AC85V~265V |
|
Power consumption |
＜70W |
|
Pixel |
4.0Megapixel |
|
Zoom lens |
30X optic zoom, 16X digital zoom |
|
Focus |
4.5-135mm， |
|
View Angle |
59.8°-2.3°(Wide-angle-telephoto) |
|
Auto Iris |
Support |
|
Resolution |
2592×1520， 2304×1296，1920×1080 @25/30fps |
|
Zoom speed |
About 3.8s(Optics, wide-angle-telephoto) |
|
Minimum illumination |
Color：0.01Lux @ (F1.6，AGC ON) B&W：0.001Lux @ (F1.6，AGC ON) |
|
Video Compression |
H.265、H.264 |
|
Signal-to-noise ratio |
＞52dB |
|
WDR |
120db |
|
BLC |
Support |
|
De-fog |
Support |
|
Strong light suppression |
Support |
|
Digital noise reduction |
Support 2D/3D |
|
Electronic image stabilization |
Support |
|
Intelligent Analysis |
Abnormal video signals (including: video blocking, camera shift, digital image stabilization), items left behind, items removed, area intrusion, cordon, double cordon, wandering, multiple people wandering, driving against traffic, abnormal speed, illegal parking |
|
Ingelligent Alarm |
Motion detection alarm, I/O alarm, disk alarm, scheduled triggering events, image upload and notification via FTP, Email and HTTP |
|
Thermal Image |
|
|
Detector |
Uncooled |
|
Material type |
Vanadium oxide |
|
Wavelength range |
8~14μm |
|
Resolution |
640×512 |
|
Pixel size |
17um |
|
Thermal sensitivity NETD |
40mK~55mk |
|
Frame rate |
50/60Hz |
|
Lens |
8/25mm optional |
|
Focusing method |
Fixed |
|
View Angle |
46o×35o/15o×11o |
|
Clear imaging range |
0.3m~∞ |
|
Pseudo-color image mode |
Black hot/white hot/rainbow/iron red/custom (up to 17 pseudo color modes optional) |
|
DVE Image enhancement |
Multi-level continuously adjustable |
|
Mirror |
Horizontal/Vertical/Horizontal+Vertical |
|
Noise reduction function |
Auto / Manual 2D、3D |
|
Correction function |
Automatic/Manual/External |
|
OSD |
Temperature, time, date, channel number, channel name and custom content |
|
Intelligent Alarm |
Motion detection alarm, I/O alarm, disk alarm, intelligent analysis alarm, temperature measurement alarm |
|
Intelligent Analysis |
Area intrusion, cordon, double cordon, items left behind, items removed, vehicle identification |
|
Temperature measurement function |
Temperature measurement function |
|
Temperature alarm |
Over-temperature alarm, temperature difference alarm, temperature range alarm |
|
Temperature measurement accuracy |
±2℃ or ±2% |
|
Multi-temperature target detection |
Support |
|
Temperature measurement response time |
≤30ms |
|
Temperature measurement working environment |
-10℃～+55℃ |
|
Temperature measurement range |
-30℃～+200℃ （0℃～600℃ for optional） |
|
Temperature display mode |
Target >5°C, the absolute temperature is displayed. Target ≤5°C, the relative temperature is displayed. |
|
Temperature measurement function |
Point temperature measurement, line temperature measurement, polygonal area temperature measurement, full screen temperature measurement |
|
Protocol |
Support ONVIF、GB/T28181 |
|
Network protocol |
IPv4/v6、RTSP/RTP/RTCP、TCP/UDP、HTTP、DHCP、DNS、FTP、DDNS、PPPOE、SMTP、SIP |
|
Environment |
|
|
Work Temperature |
（-30℃，+70℃） |
|
Air compression |
80-106KPa |
|
Relative humidity |
≤95%RH(+25℃) |
