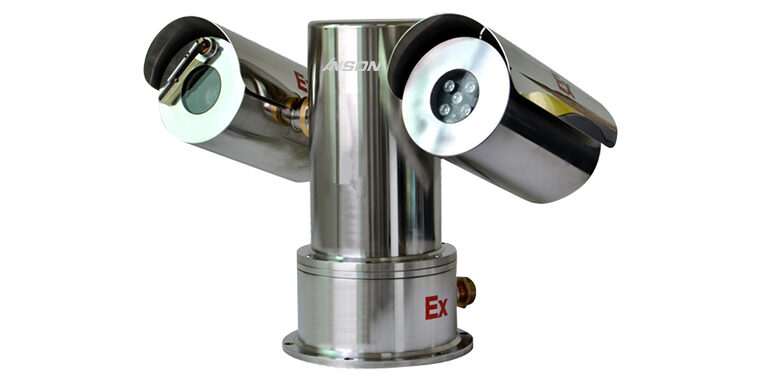

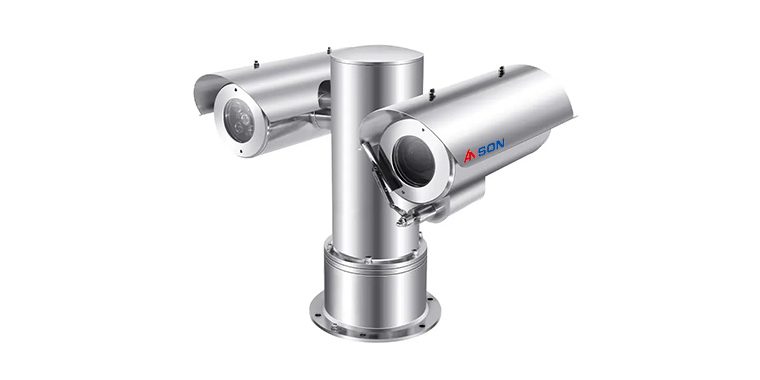

Explosion proof camera HL-E9002-W-4.0MP is an outdoor Explosion-proof integration ip PTZ camera with 33X Zoom lens, it designed with wiper.and IR Distance view 100 Meters.
Application: Ship tanks, oil field, oil depot,chemical industry, gas, ferry-place, desert, frontier defense, magazine.
Suitable for flammable gases with class II A、ⅡB、ⅡC, ignition temperature group is zone 1 and zone 2 of T1-T6 group, flammable explosive gas, dust, oil refining, refining, gas station, filling station, oil well, drilling, oil tank truck, pipeline valve station, etc. The mixture of gas, steam or foggy combustible substance and air in explosive gas environment atmosphere will spread all over the environment of unburned mixture after igniting in the mixture.
- Highly integrated explosion-proof pan/tilt, explosion-proof infrared camera, explosion-proof decoder, smaller and lighter, more intelligent and advanced functions;
- 4.0MP high-definition integrated movement, 33X optical Zoom, 16X Digital Zoom.
- Applicable to dangerous and harsh environments where various flammable gases or dust exist, double side load structure design, can be used with auxiliary lighting equipment such as cameras and fill lights.
- Using 304 stainless steel material, integrated and simple design, the window is made of tempered glass coated with waterproof film on both sides, which is impact-resistant and has
It has good shielding and cooling effect. Explosion-proof, dust-proof, waterproof, rust-proof
- 360°horizontal rotation, -90°~+90°vertical movement, all-round monitoring of suspicious targets.
- Pelco-D/Pelco-P protocol adaptive, RS422/485 communication mode.
- RS-485 control function, compatible with various communication protocols and communication rates, can accurately and quickly respond to various host instructions;
- Optical-grade high-strength and high-transmittance ultra-white explosion-proof glass, with a luminous flux rate higher than 96%, completely eliminating the halo of infrared light;
- Semiconductor thyristor temperature control components can be selected to realize automatic heating and cooling functions.
- Work Temperature: -40°C~+60°C
- Infrared visible distance 100M IR Distance
- 304 Stainless steel / 316L Stainless steel.
- Support SD card local storage: 128GB
- Support intelligent functions of : Motion detection ,intrusion detection.
<![if !supportMisalignedColumns]><![endif]>
|
Product model |
HL-E9002-W-4.0MP |
||||||
|
Visible light |
Imaging devices |
1/2.8 inch Scan 2 million |
|||||
|
Focal length/change |
33X optical Zoom, 16X Digital Zoom |
||||||
|
Zoom mode |
Electric zoom, autofocus |
||||||
|
Shutter |
1/1 seconds ~1/30,000 seconds |
||||||
|
WDR |
YES |
||||||
|
Minimum illumination |
Color :0.001 Lux @(F1.5, AGC ON) Black and white :0.0005 Lux @(F1.5, AGCON) |
||||||
|
Day and night switching |
Automatic infrared filter |
||||||
|
Code Protocol |
H.265 H.264 |
||||||
|
Resolution |
50Hz: 25fps (2560*1440 1920 1080, 1280 960, 1280 720); 60Hz: 30fps (2560*1440 1920 1080, 1280 960, 1280 720) |
||||||
|
Video streaming |
Three-code stream |
||||||
|
OSD |
Time OSD, Custom OSD |
||||||
|
Motion detection |
Support |
||||||
|
Privacy Cover |
Support |
||||||
|
Agreement |
TCP/IP HTTP DHCP DNS DDNS RTP RTSP PPPoE SMTP NTP UPnP SNMP FTP 802.1x QoS HTTPS IPv6(SIP, SRTP, optional), |
||||||
|
Compatibility |
ONVIF2.4 GB/T28181 |
||||||
|
Lens |
Lens type |
4.5 ~ 148.5mm, AF automatic |
|||||
|
Digital Zoom |
16 |
||||||
|
Optical Zoom |
33 |
||||||
|
Iris |
Auto; F1.5 ~ F4.0 |
||||||
|
Field of View (H) |
56.2 ~ 2.6 |
||||||
|
Field of View (V) |
33.5 ~ 1.4 |
||||||
|
Field of View (D) |
69.2 ~ 3.0 |
||||||
|
DORI |
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
|
|
4.5 |
72.9(239.3ft) |
29.2(95.7ft) |
14.6(47.9ft) |
7.3(23.9ft) |
|||
|
148.5 |
2187.9(7178.3ft) |
875.2(2871.3ft) |
437.6(1435.7ft) |
218.8(717.8ft) |
|||
|
Head |
Range of rotation |
Horizontal 0-360 continuous |
|||||
|
Speed of movement |
Level :0.1 -30 s, vertical :0.1 -30 |
||||||
|
Positioning accuracy of cloud |
0.1 |
||||||
|
Preset points |
255 |
||||||
|
Cruise scan |
8, each can add 32 preset |
||||||
|
Pattern scanning |
4, each path recorded for more |
||||||
|
Power off memory |
Support |
||||||
|
Watch function |
Support |
||||||
|
Variable Speed Limit |
Support |
||||||
|
Intelligent features |
Motion detection ,intrusion |
||||||
|
Auto Mode |
Automatic cruise or arbitrarily set two-point patrol |
||||||
|
Azimuth information display |
ON/OFF |
||||||
|
General norms |
Explosion proof signs |
Ex d IIC T6Gb/Ex tD A21IP68T80 |
|||||
|
Power supply mode |
AC85V ~260 V/DC24V 3A( optional) |
||||||
|
Working temperature and |
-40 ~60 , humidity less than |
||||||
|
Protection level |
IP68 |
||||||
|
Shell material |
304 stainless steel material |
||||||
|
Incoming hole specification |
1 G3/4″ feed hole |
||||||
|
Installation mode |
A variety of installation |
||||||
|
Pressure |
80-106KPa |
||||||
|
IR Distance |
100Meters |
||||||
|
Product weight |
34kgs |
||||||
