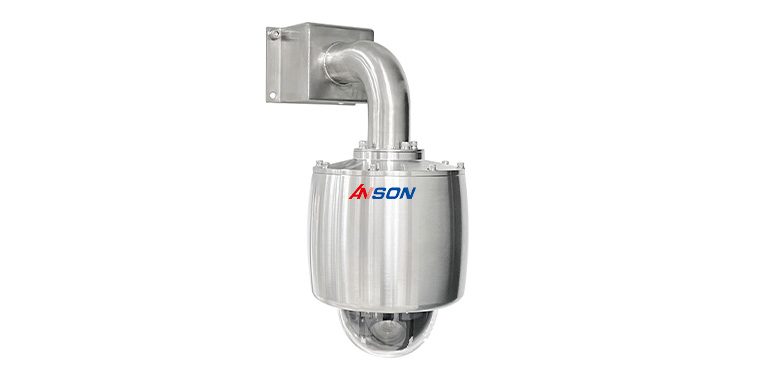

Explosion proof high speed dome camera HL-E9001-W-4.0MP is one outdoor dome camera for hazardous environment monitoring solution.
It default built-in 26x zoom lens ( can do other zoom lens as you request)
Applicable to the factory with ⅡA, Ⅱ B, Ⅱ C class T1 ~ T6 explosive mixture of flammable gas, steam and air in zone 1, 2 areas and 20, 21, 20, 21, 20, 21, Area 22 is an explosion hazard area. Such as petroleum, chemical industry, wharf, oil
depot, ship, drilling platform, gas station, mine, port, aerospace, military industry, medicine, steel, fireworks production,
machinery, grain processing and storage and other places. The shell of this pan/tilt is made of stainless steel, and the window
is made of tempered glass coated with waterproof film on both sides. It has a reasonable structure and a simple appearance. It
has the functions of preset position, automatic scanning, automatic cruise, tracking, watch position and so on. It can be
widely used in important fields such as border defense, military industry, warehouses, ships, and dangerous goods
production.
- Double explosion proof certification, explosion proof mark: Ex d ⅡC T6Gb/Ex tD A21IP68T80℃
- Resolution 2688*1520
- Support H264 and H265 video compression algorithms;
- Visible light uses a high-performance 4 million pixel 1/2.8″ CMOS image sensor，2.8mm/4mm/6mm lens optional.
- IP68,Explosion-proof,anti-corrosion,dust-proof and waterproof
- Work Temperature: -40°C~+60°C
- 30M IR Distance
- 304 Stainless steel / 316L Stainless steel.
|
Product model |
HL-9001S-D-4.0MP |
|
|
Visible light |
Imaging devices |
1/2.8 inch Scan 4MP by line |
|
Lens |
2.8mm, 4mm,, |
|
|
Aperture |
F1.6 |
|
|
Shutter |
1/1 seconds ~1/30,000 seconds |
|
|
D-WDR |
YES |
|
|
Minimum illumination |
Color :0.0005 Lux @(F1.6, AGC ON) Black and white :0 Lux @(IR ON) |
|
|
Day and night switching |
Automatic infrared filter |
|
|
Code Protocol |
H.265 H.264 |
|
|
Resolution |
50 Hz: 25 fps (2688 1520, 1920 1080, 1280 720) 60 Hz: 30 fps (2688 1520, 1920 1080, 1280 720) |
|
|
Video streaming |
Three-code stream |
|
|
Motion detection |
Support |
|
|
Privacy Cover |
Support |
|
|
Agreement |
TCP/IP HTTP DHCP DNS DDNS RTP RTSP PPPoE SMTP NTP UPnP SNMP FTP 802.1x QoS HTTPS IPv6(SIP, SRTP, optional), |
|
|
Compatibility |
ONVIF2.4 GB/T28181 |
|
|
Lens |
Lens Type |
Fixed focal lens, 2.8, 4, and 6 |
|
Focal Length & FOV |
2.8 mm, horizontal FOV 112 , vertical FOV 61 , diagonal FOV 134 4 mm, horizontal FOV 95 , vertical FOV 51 , diagonal FOV 115 6 mm, horizontal FOV 58 , vertical FOV 31 , diagonal FOV 69 |
|
|
Lens Mount |
M16 |
|
|
Iris Type |
Fixed |
|
|
Aperture |
F1.6 |
|
|
Depth Of Field |
2.8 mm, 2.5 m to 4 mm, 3.5 m to 6 mm, 7.5 m to |
|
|
DORI |
4 mm, D: 77 m, O: 30 m, R: 15 6 mm, D: 115 m, O: 45 m, R: 23 |
|
|
General norms |
Explosion proof signs |
Ex d IIC T6Gb/Ex tD A21IP68T80 |
|
Power supply mode |
DC12V 2A PoE: 802.3af, Class 3, 36 V to |
|
|
Working temperature and |
-40 ~60 , humidity less than |
|
|
Protection level |
IP68 |
|
|
Shell material |
304 stainless steel material |
|
|
Incoming hole specification |
1 G3/4″ feed hole |
|
|
Installation mode |
A variety of installation |
|
|
IR Distance |
30Meters |
|
|
Product weight |
4kgs |
|
