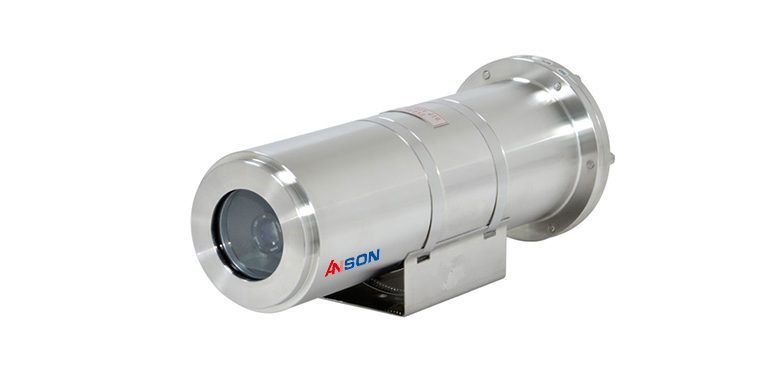

Explosion Proof Housing Camera HL-814A-W-1080P is an explosion-proof housing, built-in 26x zoom les. With invisible wiper.
Advantages:tempered glass, wide diameter, wide angle of view. Lens with drawer panels can be pulled in & out for easy installation.
Suitable for flammable gases with class II A、ⅡB、ⅡC, ignition temperature group is zone 1 and zone 2 of T1-T6 group, flammable explosive gas, dust, oil refining, refining, gas station, filling station, oil well, drilling, oil tank truck, pipeline valve station, etc. The mixture of gas, steam or foggy combustible substance and air in explosive gas environment atmosphere will spread all over the environment of un-burned mixture after igniting in the mixture.
- double explosion proof certification, explosion proof mark: Ex d ⅡC T6Gb/Ex tD A21IP68T80℃
- resolution 1920*1080P
- support H264 and H265 video compression algorithms;
- visible light uses a high-performance 2 million pixel 1/2.8″ CMOS image sensor ,26X Zoom
- IP68,Explosion-proof,anti-corrosion,dust-proof and waterproof,Work Temperature: -30°C~+60°C
- 304 Stainless steel / 316L Stainless steel.
|
Model |
HL-814A-W-1080P |
|
Mark of Explosion-proof |
ExdllCT6Gb/ExtD A21 IP68 |
|
Material |
Stainless steel 304. |
|
Grade |
IP68 |
|
Camera |
|
|
Sensor |
1/2.8 CMOS |
|
Effective pixels |
2.0MP(1920*1080) |
|
Day&Night |
AUTO Starlight |
|
White balance |
Auto/manual |
|
Min |
0.01Lux Color 0.001Lux B&W |
|
BLC |
Off/low/middle/high/very high |
|
HLC |
Support |
|
WDR Range |
100dB |
|
DNR |
3DNR |
|
SNR |
50dB |
|
Video |
H.265 Main Profile / H.264 High profile / M-JPEG |
|
Network Interface |
1ch 10/100Base Ethernet RJ45 |
|
Network |
TCP/IP HTTP NTP IGMP DHCP UDP SMTP,RTP,RTSP ARP DDNS DNS HTTPS P2P |
|
ONVIF |
Standard ONVIF2.4 |
|
Privacy |
4 Area per |
|
Day&Night |
Auto ,Fixed B&W,Fixed Color,External |
|
Auto |
Support 4 |
|
Main Stream |
1920×1080 1280×960 1280 720 720 576 640 480 |
|
Sub |
640 480 352 288 320 240 176 144 |
|
Output Stream rate |
32Kbps~10Mbps |
|
User |
3 view at the same time |
|
Lens |
|
|
Megapixel |
2.0Megapixel |
|
Day/Night |
Yes(with IR CUT filter) |
|
Lens Type |
26X Zoom |
|
General |
|
|
Outside |
340*130mm |
|
Inside Dimension |
280*100mm |
|
Weight |
6.5kg |
|
The outlet hole number |
2 |
|
Cable |
G-3/4 / M20x1.5 |
|
Power Supply |
DC 12V; 2A |
|
Working |
C30 C~+60 C |
|
Wiper |
Invisible wiper, |
