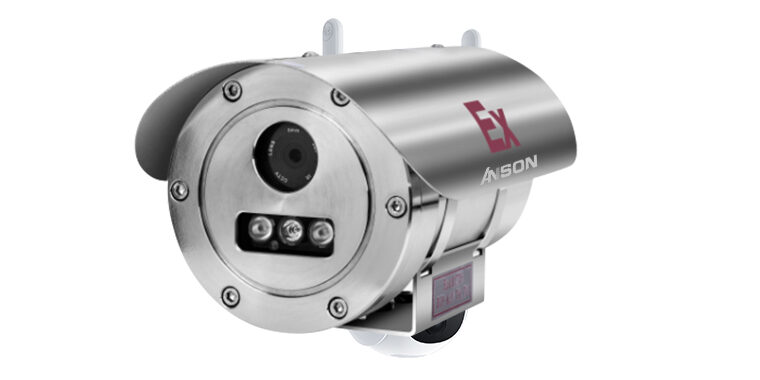

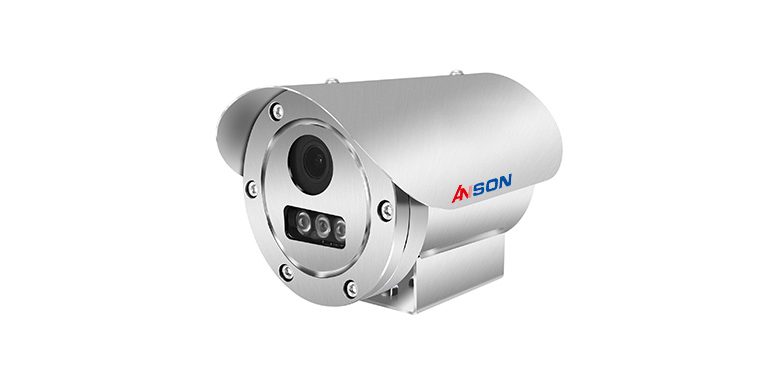

This Hazardous area camera enclosures HL-814D-M-4.0MP is one smaller size explosion proof housing camera with IR vision 30M.
Suitable for flammable gases with class II A、ⅡB、ⅡC, ignition temperature group is zone 1 and zone 2 of T1-T6 group, flammable explosive gas, dust, oil refining, refining, gas station, filling station, oil well, drilling, oil tank truck, pipeline valve station, etc. The mixture of gas, steam or foggy combustible substance and air in explosive gas environment atmosphere will spread all over the environment of un-burned mixture after igniting in the mixture.
- Double explosion proof certification, explosion proof mark:Ex db IIC T6 Gb/Extb IIIC T80℃ Db
- Resolution 4.0MP
- Support H264 and H265 video compression algorithms;
- Visible light uses a high-performance 4 million pixel 1/2.8″ CMOS image sensor ,4mm lens
- IP68,Explosion-proof,anti-corrosion,dust-proof and waterproof
- Work Temperature: -30°C~+60°C
- 30-50M IR Distance
- 304 Stainless steel / 316L Stainless steel
|
Model |
HL-814D-M-4.0MP |
|
Mark of Explosion-proof |
Ex db IIC T6 Gb/Extb IIIC T80℃ Db |
|
Material |
Stainless steel 304. |
|
Grade of waterproof |
IP68 |
|
Camera |
|
|
Sensor |
1/2.8 CMOS sensor |
|
Effective pixels |
4.0Megapixel |
|
Day&Night |
AUTO Starlight |
|
White balance |
Auto/manual |
|
Min Lux |
0.01Lux Color 0.001Lux B&W |
|
BLC |
Off/low/middle/high/very high |
|
HLC |
Support |
|
WDR Range |
100dB |
|
DNR |
3DNR |
|
SNR |
50dB |
|
Video Compression |
H.265 Main Profile / H.264 High profile / M-JPEG |
|
Network Interface |
1ch 10/100Base Ethernet RJ45 |
|
Network Protocol |
TCP/IP HTTP NTP IGMP DHCP UDP SMTP,RTP,RTSP ARP DDNS DNS HTTPS P2P |
|
ONVIF |
Standard ONVIF2.4 |
|
Privacy protection |
4 Area per |
|
Day&Night |
Auto ,Fixed B&W,Fixed Color,External |
|
Auto Mode |
Support 4 automatic cruise,4 Automatic cruise trace,4 Automatic line sweep |
|
Main Stream |
2592*1600, 1920×1080 1280×960 1280 720 720 576 640 480 |
|
Sub Stream |
640 480 352 288 320 240 176 144 |
|
Output Stream rate |
32Kbps~10Mbps |
|
User |
3 view at the same time |
|
IR Distance |
50M |
|
Lens |
|
|
Megapixel |
4.0Megapixel |
|
Day/Night |
Yes(with IR CUT filter) |
|
Lens Type |
Fixed 4mm lens |
|
General |
|
|
Outside Dimension |
240*133mm |
|
Weight |
4kg |
|
The outlet hole number |
2 |
|
Cable entry s screw spec |
G-3/4 / M20x1.5 |
|
Power Supply |
DC 12V; 2A |
|
Working Temperature |
C30 C~+70 C |
