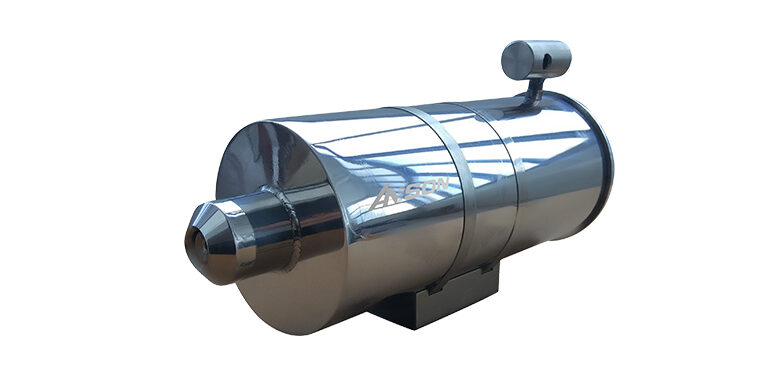

Air cooling camera HL-814F-W-1080P is one Special design camera for high temperature environment monitoring solution system.
The camera is made of double-layer stainless steel and uses a fixed bracket and pan/tilt to adjust the angle. Compressed air or nitrogen circulates through the mezzanine to achieve a cooling effect.
And an air curtain is formed on the front end cover to prevent dust. It has good anti-corrosion and anti-dust capabilities and can be used in environments with high temperature, dust and corrosive gases. Widely used in: monitoring of high-temperature areas such as steel, glass, metallurgy,cement, etc Incinerator furnace
● Air-Cooled High Temperature Housing Camera ,Resolution 2.0MP
● Support H264 and H265 video compression algorithms;
● Visible light uses a high-performance 2 million pixel 1/2.8″ CMOS image sensor ,4-20mm lens
● Work Temperature: -30°C~+650°C
● 304 Stainless steel/316L Stainless steel
Model |
HL-814F-W-1080P |
Material |
Stainless steel 304. |
Grade |
IP66 |
Camera |
|
Sensor |
1/2.8 CMOS |
Effective pixels |
2.0Megapixel |
Day&Night |
AUTO Starlight |
White balance |
Auto/manual |
Min |
0.01Lux Color 0.001Lux B&W |
BLC |
Off/low/middle/high/very high |
HLC |
Support |
WDR Range |
100dB |
DNR |
3DNR |
SNR |
50dB |
Video |
H.265 Main Profile / H.264 High profile / M-JPEG |
Network Interface |
1ch 10/100Base Ethernet RJ45 |
Network |
TCP/IP HTTP NTP IGMP DHCP UDP SMTP,RTP,RTSP ARP DDNS DNS HTTPS P2P |
ONVIF |
Standard ONVIF2.4 |
Privacy |
4 Area per |
Day&Night |
Auto ,Fixed B&W,Fixed Color,External |
Auto |
Support 4 |
Main Stream |
1920×1080 1280×960 1280 720 720 576 640 480 |
Sub |
640 480 352 288 320 240 176 144 |
Output Stream rate |
32Kbps~10Mbps |
User |
3 view at the same time |
Working Temperature |
C30 C~+650 C |
Dust |
200mg /m3 |
Compressed air temperature |
35 |
Compressed |
0.3~0.4Mpa |
Compressed air flow |
0.3~0.5m3 /min |
Lens |
|
Megapixel |
2.0Megapixel |
Focal |
f=4mm-20mm |
Lens Type |
4-20mm varifocal lens |
Aperture |
D/f=4.0 |
View Angle |
2 =67 –19.7 |
General |
|
Weight |
5kg |
Power |
DC 12V; 2A |
