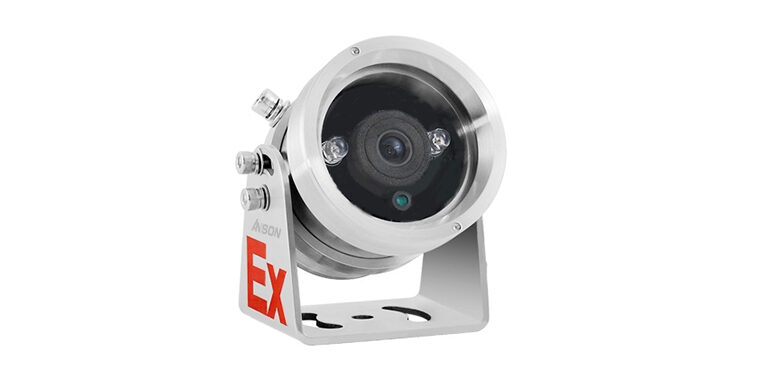

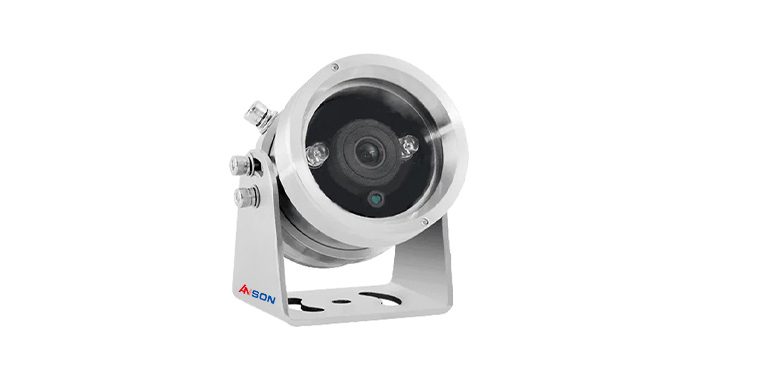

HL-E8006-4.0MP is one professional Vehicle-mounted Explosion-proof mini IP Camera. It is certificated under the standard of ExdⅡCT6Gb “Electrical apparatus for explosive gas atmospheres Part 1: General requirements”, “Explosion-proof electrical apparatus for explosive gas atmospheres Part 2: Flameproof” d “” requirements.
It is suitable for dangerous explosion gas environment.The explosion gas is class IIA,IIB and IIC and the environment group is in the temperature from T1-T6 in Area No.1,No.2,No.20,No.21 and No.22.Such as oil field,chemical plant,steamship,gas station,curative,gas storeroom and so on.
Mini size explosion-proof IR camera built-in high-brightness infrared lamp,day and night;has characteristics of small volume, light weight, flexible configuration, advanced features and so on. is a quality product to designed to meet the demand for dangerous goods transport vehicles monitor, such as gas oil tank truck..
- ◆ Professional Mini Explosion proof camera
◆ Ex-Mark : ExdⅡCT6 Gb , IP 68
◆ 1/3” CMOS,HD 4.0MP Resolution, ONVIF 2.0
◆ 6mm / 8mm lens optional
◆ 20M IR Distance, 0lux ( IR ON)
◆ ICR Filter Auto switch, Motion Detection,WDR
◆ Application: Gas / Oil Tank Truck
<h
|
Camera |
|
|
Model |
HL-E8006-4.0MP(vehicle-mounted) |
|
Ex-mark |
ExdⅡCT6 Gb |
|
Certificate |
CE13.1057 |
|
Material |
Aluminum alloy/stainless steel |
|
IP Grade |
IP68 |
|
Outside Dimension |
115×90mm |
|
Image Sensor |
1/3.2″ CMOS 4.0MP |
|
Picture Elements |
1920P 4.0MP,2688(H)x1512(V) |
|
Minimum illumination (color ,B/W,IR ON) |
Color: 0.05Lux @ F1.2, B&W: 0.02Lux @ F1.2,0lux (IR ON) |
|
System Structure |
Ambarella solution AmS2L+OV4689 |
|
Electronic Shutter Speed |
1/10000s to 1/25s |
|
Auto control |
AWB/AGC/AE/AIC,4A |
|
White Balance |
Automatic |
|
Gain Control |
Automatic |
|
S/N Ratio |
≥ 39 dB |
|
BLC |
YES |
|
Lens |
|
|
Megapixel |
Yes |
|
Day/Night |
Yes( with IR CUT filter) |
|
Lens Type |
Fixed Lens |
|
Focal Length |
6mm |
|
Maximum Aperture |
F/1.2 |
|
Mount |
M14 |
|
Image Format |
1/2.7” |
|
Operation (Focus/Zoom/Iris) |
Manual/Manual/DC drive |
|
IR Led Quantity |
36pcs IR LED |
|
Max IR Distance |
20M |
|
Operation |
|
|
Storage |
Support multiple storage ,front-end storage |
|
Video Compression |
H.264 Main Profile/High Profile 5.1 |
|
Video Output |
1Vp-p Composite Output (75 Ohm, BNC) |
|
Video Streaming |
32Kbps-30Mbps Continuous adjustable support CBR/VBR,support Smart AVC/SCBR, To optimize the H.264 low stream |
|
Frame Rate |
30fps at 2592*1944 |
|
Video Resolution |
4MP The main stream：2688*1512，1-30 fps/s |
|
Audio |
G.711/AACCodec standard, |
|
Network |
|
|
Interface |
10/100M Ethernet |
|
Ethernet Protocol |
Support HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P Network protocols ,optional GB/T28181 Agreement |
|
Network Port |
10/100M Ethernet,anti-Lightning design |
|
General |
|
|
Environment Temperature |
-25℃～70℃ |
|
Humidity |
20% to 90% RH (No condensation) |
|
Power Supply |
DC12V /POE 2.5W Max |
|
Weight |
1.5kg |
|
Vandal Resistance |
IK10 |
|
Regulatory |
CE ROHS |
|
Web interface |
|
|
Installation Management |
Web-based Configuration |
|
Maintenance |
Firmware upgrade through software |
|
Applications |
|
|
Network Storage |
NVR, SERVER |
|
Smart Device Access |
HD Live for Windows Mobile、iPhone、iPad、Android |
|
Live viewing |
IE,mobile phone |
