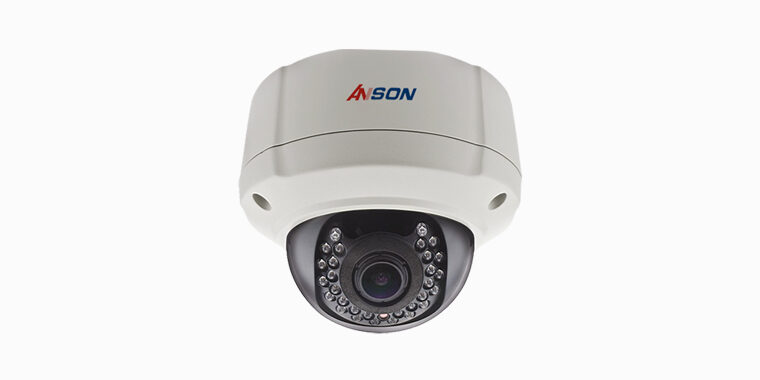

Full color starlight dome camera AX-F200VEB-IP is a new-generation 2.0megapixel IP camera.
Application: Airport, dock, station, burglary, high-risk areas, swimming pool,Banks, museums, jewelry stores, prisons,Airport, Subway and other transportation fortress,against terrorism behavior detection,Banks, ATM machines, warehouses, museums, jewelry stores,Tunnel, highway parking detection, Schools, kindergartens, etc.
- ONVIF 2.4, 60fps vandal dome Camera
- 1080P 2.0megapixel
- Resolution:30fps(1920*1080)
- 30pcs φ5 IR Led 2.8-12mm Varifocal lens 25-30m IR
- ICR Filter Auto switch, Motion Detection
- Full Color When View at night time and daytime.
|
Camera |
|
|
Model |
AX-F200VEB-IP |
|
Image Sensor |
1/1.8”2.0MpixelSony IMX185CMOS |
|
Picture Elements |
1080P 2.0MP, 1920(H)x1080(V) |
|
Minimum illumination (color ,B/W,IR ON) |
Color: 0.001Lux @ F1.2, B&W: 0.005Lux @ F1.2,0lux (IR ON) |
|
Interface |
Supports extended features of audio，Alarm, SD/TF card local storage,WIFI,4G optional |
|
Compatible |
Hikvision / XM etc brand CMS , and UC2 |
|
Electronic Shutter Speed |
1/10000s to 1/25s |
|
Auto control |
AWB/AGC/AE/AIC,4A |
|
White Balance |
Automatic |
|
Gain Control |
Automatic |
|
S/N Ratio |
≥ 39 dB |
|
BLC |
YES |
|
Lens |
|
|
Megapixel |
Yes |
|
Day/Night |
Yes( with IR CUT filter) |
|
Lens Type |
Varifocal Lens |
|
Focal Length |
2.8-12mm |
|
Maximum Aperture |
F/1.2 |
|
Mount |
CS |
|
Image Format |
1/2.7” |
|
Operation (Focus/Zoom/Iris) |
Manual/Manual/DC drive |
|
IR Led Quantity |
30pcs IR LED |
|
Max IR Distance |
20-25M |
|
Operation |
|
|
Storage |
Support multiple storage ,front-end storage |
|
Video Compression |
H.265MainProfile/H.264Mainprofile/M-JPEG |
|
Video Output |
1Vp-p Composite Output (75 Ohm, BNC) |
|
Video Streaming |
32Kbps-30Mbps Continuous adjustable support CBR/VBR,support Smart AVC/SCBR, To optimize the H.264 low stream |
|
Frame Rate |
30fps at 1920*1080 |
|
Video Resolution |
2.0MP The main stream：1920*1080，1-30 fps/s |
|
Audio |
G.711/AACCodec standard, |
|
Network |
|
|
Interface |
10/100M Ethernet |
|
Ethernet Protocol |
Support HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P |
|
Network Port |
10/100M Ethernet,anti-Lightning design |
|
General |
|
|
Environment Temperature |
0℃～50℃ |
|
Humidity |
20% to 80% RH (No condensation) |
|
Power Supply |
DC12V /POE 2.5W Max |
|
Weight |
1.5kg |
|
Vandal Resistance |
IK10 |
|
Regulatory |
CE ROHS |
|
Web interface |
|
|
Installation Management |
Web-based Configuration |
|
Maintenance |
Firmware upgrade through software |
|
Applications |
|
|
Network Storage |
NVR, SERVER |
|
Smart Device Access |
HD Live for Windows Mobile,iPhone,iPad,Android |
|
Live viewing |
IE,mobile phone |
