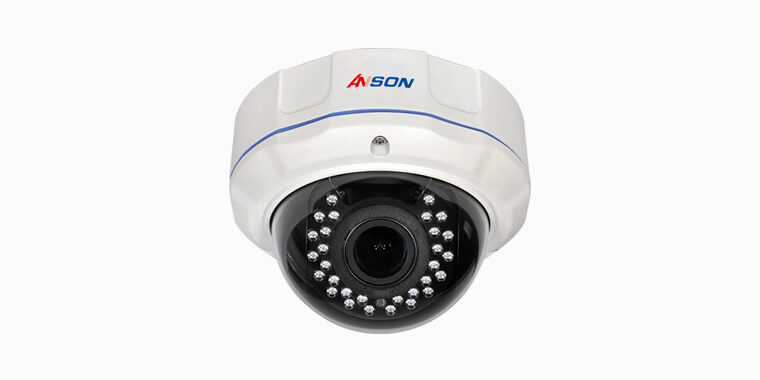

Dome IP Camera / Ambarella AX-A200VAA-IP:
1.Full HD 1080p High Picture Quality.
2.Compatible any brand NVR which support this protocal
3.Ambarella SoC+Sony Sensor(A5+IMX222).
4.Suitable for High-end quality request security system(Government Project etc).
5.Full Fuction(POE,TF card(32GB),Audio Alarm).
6.With WDR and Car Licence number function ONVIF/GB28181 Protocol
7.We supply SDK,APP,NVR,CMS,for the whole system.
Dome IP Camera / Ambarella AX-A200VAA-IP main used in elevator, chain stores
government, bank etc.
- Ambarella solution, WDR ,ONVIF 2.0
- Multi-stream: FHD/1080P + Full D1 + CVBS
- CS port lens, 2.8-12mm varifocal
- ICR Filter Auto switch, Motion Detection
%
|
Camera |
||
|
Model |
AX-A130VAA-IP |
AX-A200VAA-IP |
|
Image Sensor |
1/3″ CMOS 1.3MP |
1/2.9″ CMOS 2.0MP |
|
Picture Elements |
720P 1.3MP, 1280(H)x1024V) |
1080P 2.0MP, 1920(H)x1080(V) |
|
Minimum illumination (color ,B/W,IR ON) |
Color: 0.05Lux @ F1.2, B&W: 0.02Lux @ F1.2,0lux (IR ON) |
|
|
System Structure |
Ambarella solution |
|
|
Electronic Shutter Speed |
1/10000s to 1/25s |
|
|
Auto control |
AWB/AGC/AE/AIC,4A |
|
|
White Balance |
Automatic, Manual |
|
|
Gain Control |
Automatic |
|
|
S/N Ratio |
47 |
|
|
WDR Pro |
Yes |
|
|
BLC |
YES |
|
|
Lens |
||
|
Megapixel |
Yes |
|
|
Day/Night |
Yes( with IR CUT filter) |
|
|
Lens Type |
Varifocal |
|
|
Focal Length |
2.8-12mm |
|
|
Maximum Aperture |
F/1.2 |
|
|
Mount |
M14 |
|
|
Image Format |
1/2.7” |
|
|
Operation (Focus/Zoom/Iris) |
Manual/Manual/DC drive |
|
|
IR Led Quantity |
30pcs φ5 |
|
|
Max IR Distance |
20-25M |
|
|
Operation |
||
|
Video Compression |
H.264 Main Profile @ Level 4.1 / Motion JPEG |
|
|
Video Streaming |
From H.264/MJPEG |
|
|
Video Output |
1Vp-p Composite Output (75 Ohm, BNC) |
|
|
Video Streaming |
||
