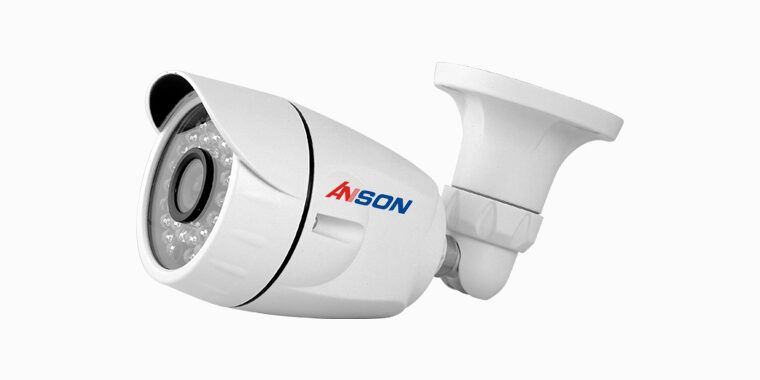

Bullet HD AHD Camera / Analog AX-200WTE-AHDBullet HD AHD Camera / Analog AX-200WTE-AHD
Bullet HD AHD Camera / Analog AX-200WTE-AHD is a professional New HD Analog technology with HD High picture quality 1080P. It is far distance transmission, high stability,no delay of the picture and compatible with conventional DVR. Low cost for upgrade of the whole system. It is main used in bank, factory, chain stores, hotel and supermarket.
- Analog High Definition
- BNC port, transmission distance (coaxial cable75-3 @1080P) is 500M.
- Support HD video
- With IR-CUT for days and night.
- OSD menu (optional)
|
Model |
AX-200WTE-AHD |
|
chip |
Nextchip2441+IMX322 |
|
sensor |
1/3 “Sony IMX322 sensor |
|
Effective pixels |
1920X1080 |
|
Video |
AHD and CVBS standard |
|
system |
PAL/NTSC |
|
Video output |
1ch AHD HD / CVBS standard definition output (can switch) |
|
Frame rate |
PAL:1920X1080@25fps NTSC:1920X1080@30fps |
|
Transmission distance max |
Over 500M via coaxial cable 75-3 |
|
Day&night |
IR-CUT auto switch |
|
OSD menu |
Optional |
|
White balance |
Auto/manual |
|
BLC |
Off/low/middle/high/ very high |
|
HLC |
support |
|
Camera Features |
|
|
IR LEDs Length |
20-25m IR |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Lens |
|
|
Focal Length |
3.6 /6 MM lens |
|
General |
|
|
Power Supply |
DC12V 1A |
|
Consumption |
4W±10% |
|
Working Environment |
-20°C~+55°C/ Humidity 95% or less (non-condensing) |
|
Transmission Distance |
Over 500m via 75-3 coaxial cable |
|
Material |
waterproof |
|
Dimensions |
102*51mm |
|
Weight |
0.6 KG |
