- Support multiple high-definition network camera access;up
to 8*5M,8POE ports Support POE power supply
- Support HDMI 4koutput simultaneously;
- Support web, CMS, MYEYE platform, provide
SDK development;
- Supportmultiple cloud technology, network
penetration, alarm information pushed to your phone
and other functions;
- Support multiple network services (support DHCP, FTP,
DNS, DDNS, NTP, UPNP, EMAIL,3G,WIFI, IP searches, Alarm
Center,etc.);
- Support ONVIF & GB28181;
- Support several mobile system (iOS, Android);
- Support multiple web browser access (IE, Chrome, Firefox, Safari);
- More than twentylanguages;
- Perfect protection circuit, unique triple watchdog function;
- Visit remotely,built-in ARSP,remote monitoring by one step
- Support multiple high-definition network camera access;up
- to 8*5M,8POE ports Support POE power supply
- Support HDMI 4koutput simultaneously;
- Support web, CMS, MYEYE platform, provide
- SDK development;
- Supportmultiple cloud technology, network
- penetration, alarm information pushed to your phoneand other functions;
- Support multiple network services (support DHCP, FTP,
- DNS, DDNS, NTP, UPNP, EMAIL,3G,WIFI, IP searches, AlarmCenter,etc.);
- Support ONVIF & GB28181;
- Support several mobile system (iOS, Android);
- Support multiple web browser access (IE, Chrome, Firefox, Safari);
- More than twentylanguages;
- Perfect protection circuit, unique triple watchdog function;
- Visit remotely,built-in ARSP,remote monitoring by one step
|
|

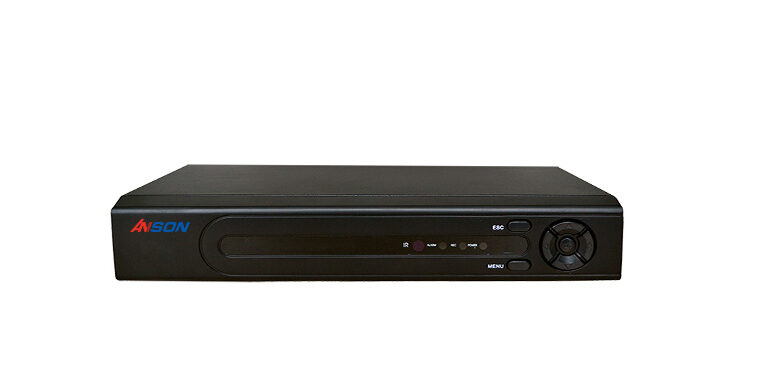

Model |
AX-5008P-P8 |
|
System |
Main processor |
Hi3798M |
|
Operating system |
Embedded Linux |
|
|
Interface |
Operator interface |
16-bit true color graphic menu operation interface,support mouse operation |
|
Preview |
1/4/8/16 |
|
|
Audio& video |
Video input |
4ch*5M/4ch*3M/8ch*3M/16ch960P |
|
Decode |
H.265/H.264 |
|
|
Monitor quality |
Max 4k |
|
|
Playback quality |
5M/3M/1080P |
|
|
Standard |
Video: PAL, NTSC; Audio:G.711A |
|
|
Motion detection |
Depend on camera |
|
|
Intercom |
Support |
|
|
Video playback |
Record mode |
Manual>Alarm>Dynamic Detection>Timing |
|
Local playback |
2ch*5M/4ch*3M/16ch*960P |
|
|
Search mode |
Search by time/calendar/event/channel |
|
|
Record storage |
HDD, Network |
|
|
Backup mode |
Network backup,USB hard disk,USB burner,SATA burner |
|
|
External interface |
Output interface |
1ch HDMI(Scalable VGA) |
|
Network interface |
1*RJ45 10M/100M Adaptive Ethernet port , 8 POE ports Support POE power supply |
|
|
Audio I/O |
0/0 |
|
|
Alarm I/O |
0/0 |
|
|
USB interface |
2*USB 2.0 ports |
|
|
HDD |
1SATA(Up to 6TB for each disk) |
|
|
General |
PTZ control |
Control PTZ device by network |
|
ONVIF |
Support |
|
|
GB28181 |
Optional |
|
|
Work environment |
Temperature:0℃-＋55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp |
|
|
Weight |
Around 1.1KG |
|
|
Power supply |
48V/2. 5A |
|
|
power consumption |
<10W (without HDD) |
|
|
Dimension |
255mm(L)* 236mm(W)* 44mm(H) |
