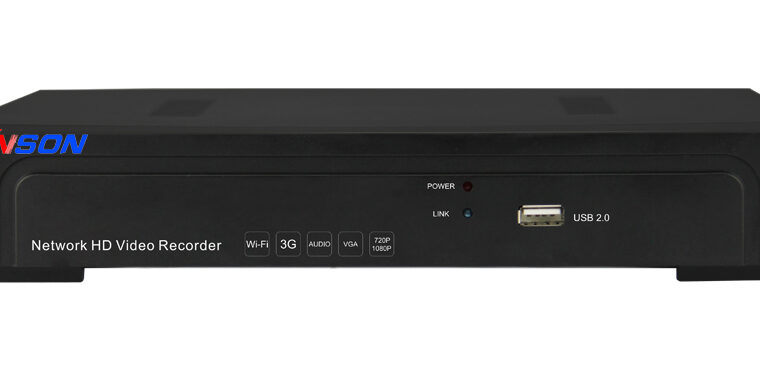

AX-6208 is one 5.0MP 8CH POE NVR that work with POE IP Camera directly.
Full Function and easy operation.
◆ Preview channel can be switched to other channel randomly without changing the MAC which is convenient for the project construction;
◆The dendritic menu can be moved. Man-machine communication is more direct and the settings of parameters are more easy and convenient;
◆The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomly under preview and playback modes;
◆ Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;
◆ The recording playback is shown by time bar and different color represents different recording type. It is very fast and easy to find check the recording;
◆ Recording backup can be accurate to second. Any time period of backup is available;
◆ The recording files in the USB disk can play directly in the playback interface while the snapshot pictures can be viewed directly;
◆ With 3G, WIFI wireless connection functions;
◆ Standard resolution which can be adjusted according to the display device in order to get the best image quality;
◆ Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD
◆ Support Compression : H.264/MJPEG/MPEG4
◆ Support Protocols :HTTP, TCP/IP, IPv4/IPv6, upnp, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, HTTPS
◆ Certifications : CE ROHS ( On Standard: EN61000 ,EN55022,EN55024),ISO9001:2008
|
Model Number |
AX-6208 |
|
|
Operating System |
Embedded LINUX operating system |
|
|
Image Code Control |
Image code quality adjustable, variable bitstream |
|
|
Dual Stream |
Each channel can set main stream and sub stream |
|
|
Video Standard |
1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps |
|
|
Monitoring Image Quality |
1080P(1920×1080) / 960P/(1280×960)/720P(1280×720) |
|
|
Image Motion Detection |
Each screen can set multiple detection areas and set 6-level sensitivity（IPC Support） |
|
|
Recording Playback Quality |
1/4/8ch playback simultaneously |
|
|
Region Cover |
Every channel can set 4 cover regions（IPC Support） |
|
|
Recording Mode |
Support manual , auto, dynamic detection, alarm trigger record |
|
|
Backup Way |
Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup |
|
|
Operation Way |
Mouse |
|
|
Local Login |
Username and password |
|
|
Recording Storage |
Local HDD, network |
|
|
External Ports |
Video Input |
① 8×(1280*960) +sub[720*576]+4Ref.+9Play , 8ch 1.3MP IP Camera |
|
② 8×(2048*1536)+sub[960*576]+4Ref.+4Play , 8ch 3.0MP IP Camera |
||
|
③ 8×(2592*1944)+sub[960*576]+4Ref.+4Play , |
||
|
Recording Performance |
First video Profile: H.264 @1080p @240 FPS ;720P @400fps |
|
|
Secondary Video Profile: H.264 @ D1/VGA @ 240 fps |
||
|
Audio Input |
8ch network audio input |
|
|
Video Output |
1ch VGA+1ch HDMI |
|
|
Audio Output |
1ch RCA Output |
|
|
Network Port |
1 RJ45, 10/100M self-adaptive LAN port |
|
|
USB Port |
2 USB 2.0 ports |
|
|
Alarm Input |
2ch(Optional) |
|
|
Alarm Output |
1ch(Optional) |
|
|
Wireless Port |
WIFI |
|
|
HDD & POE |
HDD Port |
1 SATA HDD Port |
|
MAX Capacity |
Each port supports MAX 6TB HDD |
|
|
POE Port |
8* 10/100M Independent LAN port, data transferring |
|
|
Consumption |
120W |
|
|
Standard |
IEEE802.3af |
|
|
Mobile Surveillance |
Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart |
|
|
Power Supply |
DC48V2.5A |
|
|
Power Consumption |
≤115W（without HDD） |
|
|
Working Temperature |
-10℃～＋60℃ |
|
|
Working Humidity |
10％-90％ |
|
|
Dimension |
Equipment：260mm×220mm×43mm， Packing：355mm×255mm×88.5mm |
|
|
Weight(without HDD) |
N.W.：1.5Kg；With packing：2.4Kg |
|
|
Outside Carton |
10 pcs/carton. 525mm×455mm×365mm； Weight：25Kg |
|
|
Installation Way |
Desktop Installation |
|
