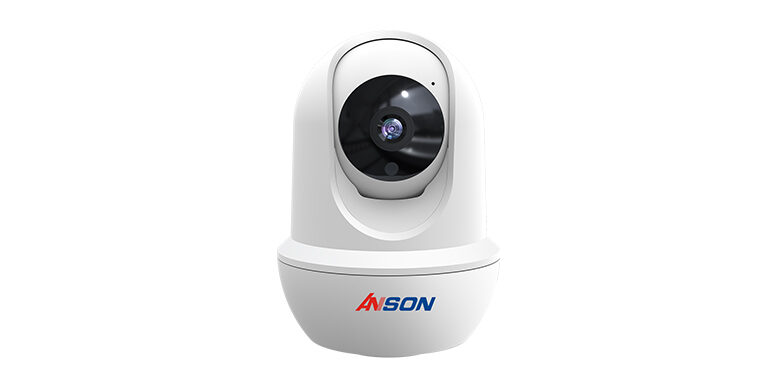

Hot-selling wifi long electric consumption dome camera, as its easy installation, high resolution and convenience monitoring solution, now most people choose it for home security.
Application: home security, house monitoring etc.
◆Support day/night conversion
◆Support WIFI wireless network connection
(WIFI6+BLE/ dual-band/dual-band +BLE)
◆Support noise reduction, digital wide dynamic
◆Support two-way audio
◆Support 2.4G/5G Dual-band WiFi
◆Support Pan:0-350°,Tilt:0-90°
◆Support cloud storage technology, support
SD card storage (MAX 128G)
◆Support PTZ control
◆AI Intelligent features (Human detection,
vehicle detection, animal detection, object loss
detection, object residue detection) optional
|
Model |
AX-D103 |
|
Camera |
|
|
Image sensor |
1/3” 4Megapixel CMOS |
|
Effective |
2560(H)*1440(V) |
|
Shutter |
1/15~1/10,000s |
|
Min |
Color 1Lux Black/White 1Lux |
|
IR |
Black & white image, night vision distance is 10M |
|
Day/Night |
Auto(ICR)/Color/ |
|
WDR |
DWDR |
|
Lens |
4mm,@F2.2 93 |
|
Video&Audio |
|
|
Video |
H.264 |
|
Bit rate |
32Kbps~2Mbps |
|
Audio |
Built-in |
|
Network |
|
|
Communication |
TCP/IP, HTTP, DHCP, DNS, RTSP |
|
Interface |
Private |
|
Wireless |
2.4G/5G Dual-band WiFi |
|
Supported |
iOS 9 or later,Android 5 or later |
|
Security |
User authentication, software encryption |
|
ONVIF |
Support |
|
General |
|
|
Operating |
−20 C to 50 C |
|
Power supply |
DC 5V/1A |
|
Pan & Tilt |
Pan:0 ~350 auto motor ,Tilt:0~90 auto motor |
|
Storage |
SD card(Max.128G), |
|
Size(mm) |
88*88*120mm L*W*H |
|
Weight |
0.36KG |
