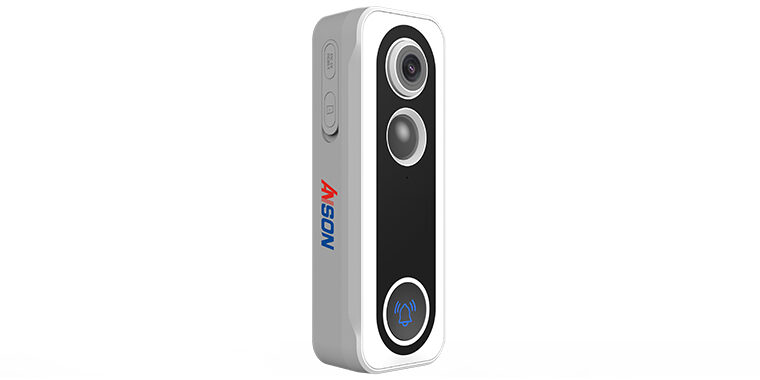

Hot-selling wifi battery doorbell, as its easy installation, high resolution and convenience monitoring solution, now most people choose it for home security.
Application: home security, house monitoring etc.
◆5000mAh rechargeable batteries
◆PIR human detection
◆Two-way audio (full duplex)
◆IP65 weatherproof
◆Anti-theft alarm
Model |
AX-PY01-A |
Camera |
|
Image |
1/2.7” 3 Megapixel CMOS SENSOR: SC301IOT) |
Effective |
1984(H)*1488(V) |
Shutter |
1/15~1/100,000s |
Min |
Color 0.1Lux Black/White 0.01Lux |
IR |
Black & white image, night vision |
Day/Night |
Auto(ICR)/Color/ B/W |
WDR |
DWDR |
Lens |
135 /128 /70 @D/H/V |
Video&Audio |
|
Video |
H.264 |
Bit |
32Kbps~2Mbps |
Frame |
1~25fps |
Dual |
Yes |
Audio |
Built-in mic/speaker |
Network |
|
Alarm |
Button triggering, PIR detection, |
Wireless |
64/128-bit WPA/WPA2, WPA -PSK/WPA2-PSK, |
Communication |
HTTP, DHCP, DNS, TCP/IP |
Interface |
Private |
Wireless |
2.4G WIFI(IEEE802.11b/g/n) |
Supported |
iOS 9 or later,Android 5 or later |
Security |
AES128 |
Battery |
|
Battery |
5000mAh rechargeable Li batteries |
Stand-by |
200-800 µA (average) |
Working |
150-200 mA (IR off) |
Standby time |
5 months |
Working |
2 months (20 times wake up per day) |
PIR |
8m Max, 100 |
General |
|
Operating |
−20 C to 50 C |
Power |
DC 5V/2A |
Power |
Max. 2W |
IP |
IP65 |
Storage |
SD card(Max.128GB), |
Size(mm) |
52*30*143mm(without |
Weight |
523g |
