AN-720A2 1.0MP AHD Cameras Mainboard
AN-720A2
1.0MP AHD Cameras Mainboard

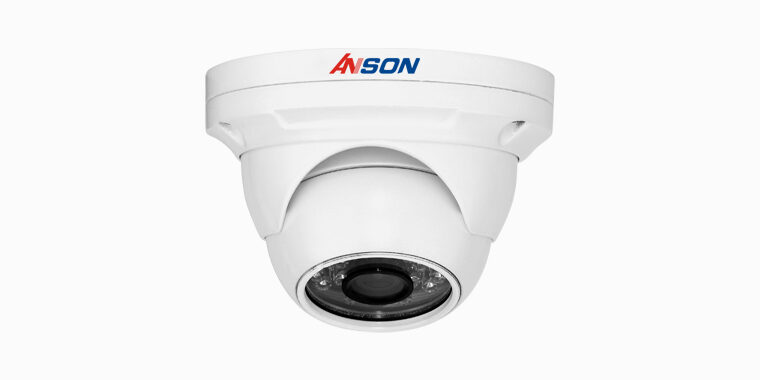

Dome HD CVI camera / Analog AX-200VLB-CVI is a HD Analog cameras , it is vandal proof cameras and always used in Bank, Chain stores,SupermarketHotel
Factory etc.
- Technical Highlights
- HD Video format
- 1280H(1280×1080)
- Analog Modulation
- Uncompressed and crosstalk-free
- Transmission over coaxial cable
- Reliable and low-latency point-to-point transmission
- Auto Compensation & Long range transmission
- 1280H(1280×1080): 500m via Φ75-3
- Composite video/audio/PTZ signals
- HDCVI composites video, audio and PTZ signals together and have them transmitted over coaxial cable.
- Two-way data transmission
|
Model |
AX-200VLB-CVI |
|
Camera |
|
|
Image Sensor |
2.0Megapixel CMOS |
|
Effective Pixels |
1280(H) x1080 |
|
Synchronization |
Internal |
|
Min. Illumination |
0.01Lux@F1.2(AGC ON) |
|
Video Output |
1-channel BNC HDCVI high definition video output |
|
Camera Features |
|
|
IR LEDs Length |
20m IR |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
Lens |
|
|
Focal Length |
6mm fixed lens |
|
General |
|
|
Power Supply |
DC12V±10% |
|
Power Consumption |
Max. 3.6 W |
|
Working Environment |
-20°C~+50°C/ Humidity 95% or less (non-condensing) |
|
Transmission Distance |
Over 500m via 75-3 coaxial cable |
|
Material |
Vandal proof |
|
Dimensions |
D119*H87mm |
|
Weight |
0.6KG |
